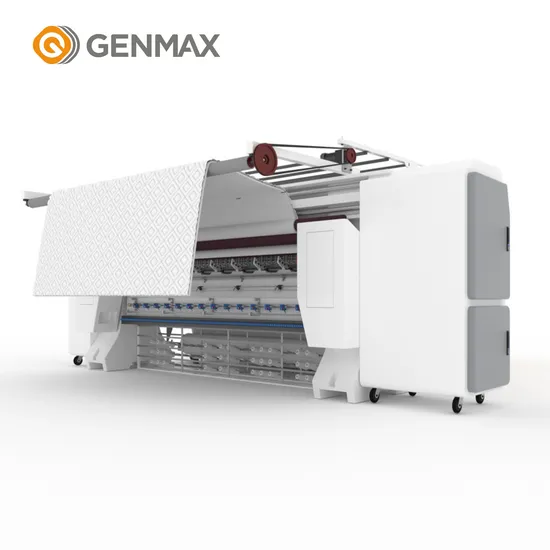

High Efficiency Computerized Chain Stitch Multi-Needle Quilting Machine M4
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
M4
Certification
ISO, CE, SGS
Condition
New
Voltage
380V
Type
Computerized Quilting Machine
Quilt Width
2450mm
Production Speed
60-230 (M/H)
Stitch Size
3-8mm
Power Supply
380V 3p 50Hz
Quilting Thickness
<80mm
Needle Space
25.4mm
Motor Power
7kw
Weight
4500kg
Transport Package
Wooden Case
Specification
Set
Trademark
Genmax
Origin
China
HS Code
84522190
Production Capacity
1000 Sets
Product Description
If you need more detailed information and other models, please email us. We will promptly reply to you.Pettern-combinging function. Suitable for very thick materials. Automatic pause in case of thread_breaking, automatic thread-cutting. Small distance movement and automatic self-testing function. Easy tolearn the patterns setting methods. Advanced computer control system, easy to operate. Multi-span independent pattern(360.,180. available.).Lowest power consumption among all the domestic brands. Highest needle-operation speed among all the bards.
| Model | GM-M4 | Dimension(L×W×H) | 4800×1600×2000mm |
| Quilting width | 2450mm | Space between needle rows | 50.8,76.2,127(5") ,76.2,76.2,152.4(6") |
| Space between needles | 25.4mm | X-axis movement displacement | 410mm |
| Stitch length | 3-8mm | Speed of operation | 60-230 (m/h) |
| Model of needle | 24/180,23/160,22/140,21/130 | Quilting speed | 200-900 (r/min) |
| Power | 7kw | Voltage | 380V/50HZ 220V/60HZ |
| Weight | 4500kg | Quilting Thickness | <80mm |
