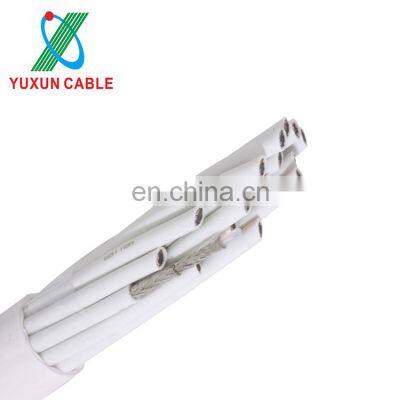

YUXUN BT3002 Single Core Cable Multi 8 / 16 Core Coaxial BT 3002 Cable

Product Description

Product Description
YUXUN BT3002 Single Core Cable Multi 8 / 16 Core Coaxial BT 3002 CableProduct Description BT3002×16C 75Ohm Coaxial Cable Specifications: INNER CONDUCTORMaterialBare Copper Diameter 0.31mm±0.01 INSULATIONMaterialLD-PE Diameter1.95mm± 0.1 OUTER CONDUCTORMaterial1Tinned copper Diameter180*0.10mm Pitch125mm,85% Coverage, Material2Tinned copper Diameter296*0.10mm Pitch225mm,86% Coverage, FillerMaterial1PP Wire,0.2*20mm WarppingMaterial1Polyester(Pet)Tape Diameter10.03*50mm OVERALL JACKET1Material1Grey PVC Diameter13.55±0.20mm OVERALL JACKET2Material2Grey PVC Diameter219.0mm CHARACTERISTIC IMPEDANCE75ohms±3 OPERATING TEMPERATURE RANGE70 Deg C CAPACITANCE RATIO (CONDUCTOR TO SHIELD)66(pf/m) ATTENUATION2.17 [ dB/100m@1MHZ] 4.38 [ dB/100m@4MHZ] 9.11 [ dB/100m@17MHZ] 18.69 [ dB/100m@69MHZ] 19.92[ dB/100m@78MHZ] Company InformationFound in 1996, Zhuhai Yuxun Innovation Technology Co.Ltd is one of the leading cable manufacturer in China. The cables are used widely in CATV, CCTV,HDMI, internet, telecommunication, computer, car antenna, IP surveillance,elevator monitor etc. Our company also make the connectors and accessories to fit the cables. In the recently years, our company develop some new electric consumer products.Zhuhai Yuxun company covers an area of 20000 square meter and has 180 employees at present. Our company have gotten the certificates of ISO9004, ISO14001, UL, CE, IEC, ROHS,REACH and CPR etc. High quality product and good service has won the customers’ trust and long term cooperation.Welcome all the customers from all over the world! Production Line Our client Packaging & Shipping Certifications FAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
