Two Roll Open Rubber Mixing Mill Lab Rubber Machine Mixer6/10/12/14/16/18/22/26/28 Inch

Product Description

we can make nonstanard machine based on your request,because different equipment, prices changes a lot, Please confirm with me
1 models like XK160/250/360 ?
2 what is voltage .. , 380v?220v?480v?other?
3 if not standard, then what is your roll length? roll diameter?
when you send enquiry.

Model		X(S)K-160	X(S)K -250	X(S)K -360	X(S)K -400	X(S)K -450	X(S)K -550	X(S)K-660
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500

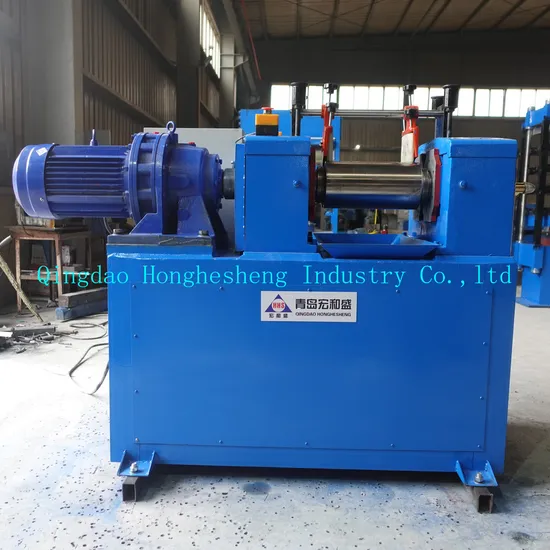

Roller Mixer Open Mixing Mill For Rubber is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing (plasticizing), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet. Two roll mixing mill is also the main machine to make reclaimed rubber.
1. Rubber open roller mixing machine is used to mixing rubber or press rubber sheet.
2. Rubber open roller mixing machine can be followed by batch off plant, or plate vulcanizing press depends on what you make next step.
3. The rubber open roller mixing machine has hollowed structure or drilled structure which ensures good cooling effect.
4. The rubber open roller mixing machine can add a head for easy stock turning.
5. ISO, CE, GOST certificate for any market exporting.
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Train how to install and use.
* Communicate and drawing design. * Overseas Service.
* Test machine before delivery. * Video Call Support Online
1. Q: How does your factory control quality?
A: Quality is priority. Quality Department will make a strick inspection before the machines leave the factory.

2. Q: Are the techncal parameter is fixed?
A: Basically, each model is corresponding to a related machine. But we can design different type machine according to the client's requirement.

3. Q: How to send your enquiry? Kindly tell me the answer...
-1) What's pressure do you need?
-2) What's your product material,lengh,width,thickness...?
