Automatic Pet Bottle Soft Drink Liquid Pure Mineral Water Bottling Filling Machine

Product Description

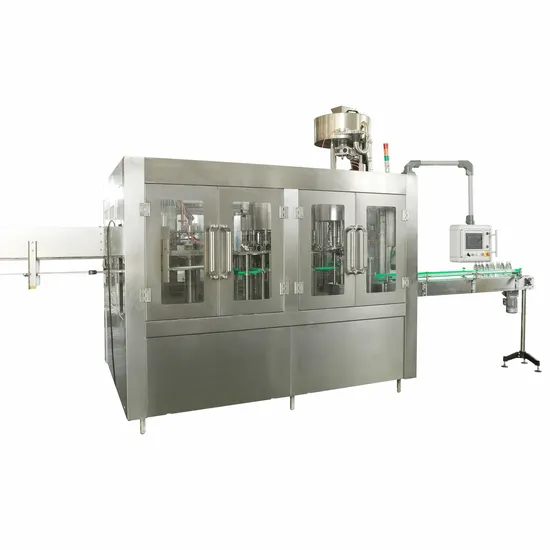

Automatic Pet Bottle Soft Drink Beverage Liquid Pure Mineral Water Bottling Filling Machine (CGF18-18-6)
This series of mineral water filling machine are applied to the production of pure water, mineral water, with optional capacity from 3, 000 to 30,000BPH.The washing, filling and capping will be finished just by this one machine.
It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality stainless steel.
Main Feature: This machine has a compact structure, perfect control system, easy to operate and highly automated. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap. This machine has a high efficient cap arranging system, perfect cap feeding and protection device. Equipped with perfect clean management system to ensure the bottle clean. Only by changing the star-wheel, can realize to fill the changed bottle shape. The machine adopts perfect overload protective device can ensure the operator and machine safe. This machine adopts adjustable frequency converter. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc. The electric components and pneumatic components are all introduced from world famous brand products.
Technical parameter:

Model:	CGF14/12/5	CGF18/18/6		CGF24/24/8	CGF32/32/10	CGF40/40/12
Production Capacity:500ml(b/h)	3000-4000	6000-7000		9000-10000	13000-14000	18000-19000
Filling precision	≤3mm (liquid level)
Suitable bottle standard:(mm)	Bottle diameter: φ40-φ80, bottle height: 130-280mm		Bottle diameter: φ50-φ100 bottle height: 150-320mm
Suitable cap standard:(mm)	Plastic screw cap, φ20-φ50
Pressure for washing bottle(Mpa)	0.18
Water consumption for washing bottle(Kg/h)	800	1600		2500	3500	3600
Spraying position	5	5		6	12	15
Dripping bottle position	3	3		3.5	7	9
Gas source pressure(Mpa)	0.6
Gas consumption(m3/min)	0.3	0.3		0.4	0.5	0.7
Total power(Kw)	4.23	5.03		6.57	8.63	10.68
Overall Dimension (L×W×H, mm)	2100×1500×2200	2450×1800×2200		2750×2180×2200	3800×2200×2250	4200×2400×2350
Total Weight:(kg)	2000	3500		5500	8000	9500

Washing Part
Filling Part
Capping Part
