Automatic Cold Steel Corrugated Iron Sheet Roofing Tile Making Roll Forming Machine

Product Description

Product Description

Product Parameters
The machine is composed of the Frame, PLC control system, hydraulic station, and automatic shearing system.The tile/roof produced are flat and beautiful in appearance, uniform in paint pattern, and are widely used in industrial and civil buildings, such as houses, warehouses, garages, hangars, gymnasiums, exhibition halls, theaters and other room surfaces and walls.

specification

Name	IBR 840metal roofing panels roll forming making machine roofing wall sheets
Material thickness	0.3-0.8mm
Frame Design	350H steel
Roll Stages	14-15 stages
Material Of Forming Roller	45# steel CNC Iathes Hard Chrome Coated
Shafts Diameter	70mm
Thickness Of Middle plate	16mm
Main Motor Power	4KW
Speed	13-15M/min
Electric Standard	380V/50HZ/3PH or as your need
Color of Machine	Blue or as your requirements

Product Composition
This machine is special equipment for rolling metal/steel coils,processing withdecoiling , continuously roll forming, automatic length/quantity to cut for customer's request. Whole unit with PLC control,AC variable frequency speed regulation technology for automatic roof profiling production, that would be the ideal equipment for cold steel roll forming and steel structure.

Feeding device
With handwheels for easy adjustable

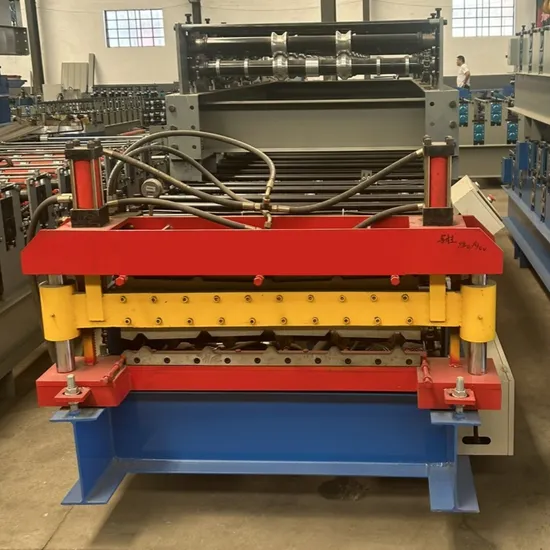

Hydraulic cutting device
Strong cutting,good finished product shape

PLC
Adopted touch screen for easy operation.Adopted aviation plugs for easy installation.

Hydraulic station
updated type,low noise and cooling fan for long service time.


Packaging & Shipping
Company Profile
We, Tangshan Shuoen International Trade Co., Ltd. is a professional machine merchant, We have been focusing on this field for many years. Our equipment includes nail making machine,wire drawing machine,roofing sheet making machine,wire mesh making machine,Brick Making Machinery,barbed wire machine,Light steel keel machine,Purin roll foming machine,steel bar cold drawing machine,Pipe making machine, and other related mechanical components like mill rolls. At the same time, our machines use branded electrical components, raw materials from branded steel factories, Our factory will have strict process control, one-year warranty, installation and training services. Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc. Our company has sales department, documents department, purchasing and logistics department, operation department, finance department and customer service department. Every staff in the company has many years international trade experience. The perfect department configuration ensure Shuoen to have professional service, ability of carrying out contracts and resisting risk that may occur during the Execution of contract. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Certifications


customer photos

Thank you for your trust and choice, we will provide you with the best service support and help you

FAQ
1. who are we?We are based in Hebei, China, start from 2021,sell to Africa(40.00%),South America(30.00%),Mid East(15.00%),Southeast Asia(15.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Brick Making Machinery, Roofing Sheet Making Machine, Wire Drawing Machine, Nail Making Machines, Wire Mesh Making Machine4. why should you buy from us not from other suppliers?Our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C;Language Spoken:English
