1.3m Road Cold Recycler Xm1303K Asphalt Milling Machine
| US$65,000.00-93,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XM1303K
Type
Tool Milling Machine
Object
Asphalt or Concerete
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Milling Witdth
1020mm
Engine Model
Yc4d80-T11
Max. Milling Depth
120mm
Engine Power
115kw
Operating Speed
0-13m/Min
Travel Speed
0-13km/H
Transport Package
Nude Package
Specification
ISO, CE
Origin
Jiangsu, China
HS Code
84292090
Production Capacity
50units/Month
Product Description

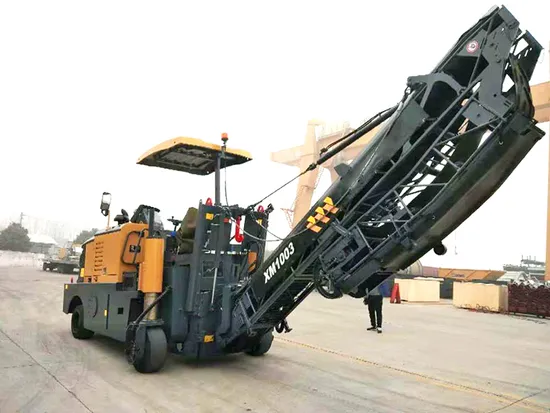

1m cold milling machine construction road asphalt milling machine
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
| Model | XM1003 | XM1003K | XM1303K | XM2005K | |
| Max. milled width (mm) | 1020 | 1020 | 1300 | 2000 | |
| Max. milled depth (mm) | 120 | 120 | 250 | 320 | |
| Milling Drum | Milled frum tools | 84 | 84 | 112 | 168 |
| Drum diameter (mm) | 660 | 660 | 860 | 980 | |
| Engine | Model | YC6108ZG | D6114ZGB | C6121ZLG | BF8M1015 |
| Rated power (KW/HP) | 115/154 | 125/170 | 160/215 | 419/570 | |
| Rated speed (rpm) | 2200 | 2200 | 2200 | 2100 | |
| Specifications | Operating speed (m/min) | 0~13 | 0~13 | 0~30 | 0~30 |
| Travel speed (km/h) | 0~13 | 0~13 | 0~7 | 0~5 | |
| Gradeability (%) | ≥ 20 | ≥ 20 | 50 | 100 | |
| Min. turning radium (m) | 5 | 5 | 5 | 2.6 | |
| Ground clearance (mm) | 120 | 120 | 120 | 300 | |
| Operating weight (kg) | 13000 | 14500 | 18000 | 31000 | |
| Volume | Fuel tank (L) | 180 | 180 | 280 | 1320 |
| Hydraulic oil tank (L) | 150 | 150 | 160 | 400 | |
| Water tank (L) | 350 | 350 | 780 | 3430 | |
| Conveyor | Width (mm) | 400 | 600 | 800 | |
| Measurement | Overall machinery (L× W× H) (mm) | 4522× 2218× 2804 | 4522× 2218× 2804 | 4525× 2130× 2895 | 7100× 2500× 3000 |
| Conveyor (L× W× H) (mm) | 5640× 700× 610 | 7020× 940× 760 | 8000× 1150× 1500 | ||
| Travel mode | Tire | Tire | Tire | Track | |
