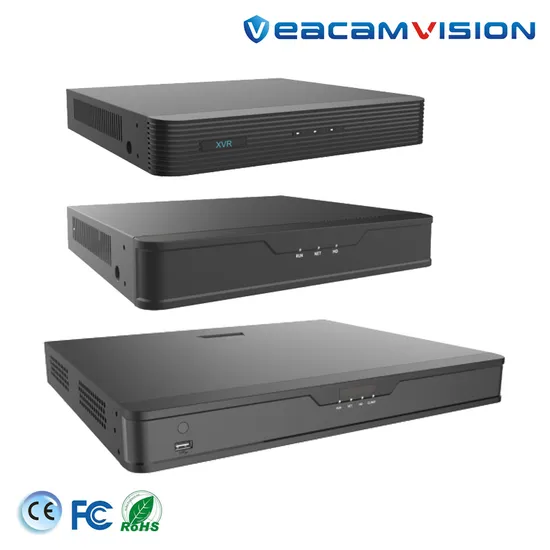

H. 265 Onvif CCTV 5in1 Xvr DVR Hybrid Recorder for Analog and IP Cameras

Product Description

Product Description
Product Description Onvif CCTV DVR Hybrid Recorder for Analog and IP Cameras Introducing the 8CH XVR Onvif CCTV DVR Hybrid Recorder, the perfect solution for all your surveillance needs. With its advanced features and compatibility with various camera types, this DVR recorder is a must-have for any security setup.
Key Features:
Supports H.265/H.264 video formats for high-quality recordings.
Allows audio transmission over coaxial cable, ensuring clear and synchronized audio with your video footage.
Compatible with TVI, AHD, CVI, CVBS, and IP cameras, providing adaptive access to a wide range of camera options.
Equipped with 8-channel BNC input for seamless connectivity.
Offers 1-ch HDMI output and 1-ch VGA output at up to 1920*1080 resolution, delivering crisp and detailed visuals.
Enables long transmission distances over coax cable, ensuring reliable surveillance coverage
Trust Veacam Electronics Co., Ltd, a reputable company known for its high-quality products, to provide you with a reliable and efficient hybrid recorder for both analog and IP cameras. With this 5in1 XVR Hybrid DVR, you can easily monitor and record footage from various camera types, making it a versatile choice for any surveillance setup.
Upgrade your security system with the Onvif CCTV DVR Hybrid Recorder for Analog and IP Cameras. Order yours today and experience the convenience and peace of mind that comes with top-notch surveillance technology.
Product Parameters

Model	VCXVR-804UA1S
Video/Audio Input
Analog Video Input	8-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (Up to 48Mbps after all analog channel conversion)
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite/1080P/720P/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@12fps	D1@12fps
	4MP Lite@15fps	D1@15fps
	2MP@15fps	D1@15fps
	720P@30fps	D1@30fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
General
Power Supply	12V DC Power Consumption: ≤ 8 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm × 243mm × 46mm (10.2" × 9.6" × 1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )
