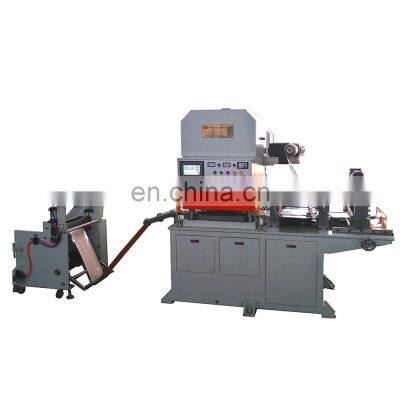

max working area 650x600mm automatic die cutting and creasing machine

Product Description

Product Description
Product DescriptionFirst , Machine main technical dataA. max die cutting speed 30 cuts/minute B. die cutting area 650*600mm(width * length )C. unwind roll max diameter 600mmD. max paper roll diameter 600 mm E. left to right position precision : ±0.050mmF. Step Accuracy : ±0.10mmG. Total power : about 11.0kwH. Power Voltage: 3P 380V 50HZTechnical Parameters1 Working area:650*600mm table travel:100mm (adjustable)2 Max working pressure :40Tons table board height :1000mm3 Precise :±0.01m/mConfiguration details1. PLC 1Set Made in Japan Mitsubishi2. Touch Screen 1Set Made in Taiwan3. Photoelectric Safety 4Set Made in Taiwan4. Automatic pressure regulating motor 2Set Made in Taiwan5.Main Motor(5.5KW-4) 1Set Made in Taiwan Chyun Tseh6. Oil Pump 1Set Made in Taiwan Danxin7.Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin8. Main machine Hydro-cylinder 2 set Dapeng Machinery own9. air cooling system 1set Made in Taiwan Danxin10. Servo Motor 1set Made in Taiwan Delta11. Automatic unwinding machine 1set width 320MM air shaft 400W DC Motor12. movable cutting table 1Set Knife width 360mm13. electronic pressure sensors 2 set Made in Beijing Hangtian14. laminating roller 320mm 1set Dapeng Machinery own15.unwinding roller ( with tension control ) Dapeng Machinery own16.waste discharge roller 1set ( include waste discharge motor)17.pulling roller 1set Servo motor transmission * special design under cutting positioning mechanism ( import ), accuracy of 0.01mm, can do through cutting and kiss cutting,trimming precision 0.01mm*Precision feeding with servo motor can achieve precision of feeding.* Security guards, safety magic eye protection device Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm There is shockproof board installed atunder-chassis , therefore , the machine body is stable and reliable Applies to punch electronic materials such as aluminum foil,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming PLC +man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protectionCertifications
