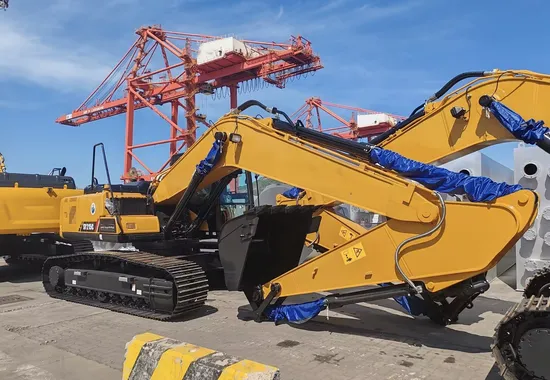

Famous Brand Hydraulic Crawler Excavator 21ton Sy215c Popular in Ghana for Construction
Basic Info.
Model NO.
SY215C
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
21900kg
Engine Model
4m50
Engine Output Power
118/2000kw/Rpm
Displacement
4.9L
Number of Cylinders
6
Emission
Tier 3 / Stage III
Ground Pressure
45.9kpa
Bucket Digging Force
138/148kN
Arm Digging Force
103/107kN
Traveling Speed
5.4/3.3km/H
Fuel Tank
390L
Hydraulic Oil
239L
Coolant
25L
Standard Track
600mm
Number of Track Shoes
47
Transport Package
Nude Packing
Specification
9395*2980*2955mm
Trademark
Famous brand
Origin
Hunan, China
HS Code
8429521200
Production Capacity
5000 Pieces/Year
Product Description
21Ton Hydraulic Crawler Excavator SY215C Popular in GhanaProduct Description
The SY215C particularly stable heavy-duty undercarriage provides the maximum possible stability. Its welded reinforcements and the use of robust, high strength steel ensure minimal wear, even when used continually under the maximum load.
Product Characteristics
· Powered by a diesel engine, the excavator features fuel-efficient technology that can save as much as 10% on your fuel costs.
· The digging force is excellent as all the working conditions are analyzed, combined with the accurate time power adjustment.
· Equipped with a unique handle, optimized valve trim structure, regenerating passage, innovative flow combining, and so on, the pressure loss is reduced to a minimum; thus, the excavator is very easy to operate.
Water-cooling turbo diesel engine, with six-cylinder, four-stroke direct-injection turbocharger and air-air intercooler. The overheat protection function limits travel speed when coolant reaches certain temperature. When coolant overheat alarmis activated,the engine enters auto deceleration mode till the coolant temperature drops to nomal level. This ensures high reliabilityand stability of the machine as a whole.
Product Parameters
| ltem | SY215C |
| Overall weight | 20900kg |
| Std. Bucket Volume | 0.93m3 |
| Quota Power | 114kW/2050rpm |
| Travel Speed (Highest/Lowest) | 5.5/3.3km/h |
| Swing Speed | 11rpm |
| Gradeability | 70%/35° |
| Ground Pressure | 45kPa |
| Bucket Digging Force | 138 kN |
| Arm Digging Force | 100kN |
| Fuel Tank | 340L |
| Hydraulic Tank | 239L |
| Engine Oil | 22.75L |
| Radiator | 11.5L |
| Final Drive | 2*5.5L |
| Swing Drive | 4L |
| Number Of Track Shoes | 47 |
| Carrier Roller (per side) | 2 |
| Track Roller(per side) | 8 |
| Standard Track | 600m |
| Max. Digging Height | 9305 |
| Max. Dumping Height | 6475 |
| Max. Digging Depth | 6630 |
| Max. Vertical Digging Depth | 5980 |
| Max.Excavating Distance | 9885 |
| Min. Swing Radius | 3630 |
| Height at Min. Swing Radius | 7570 |
