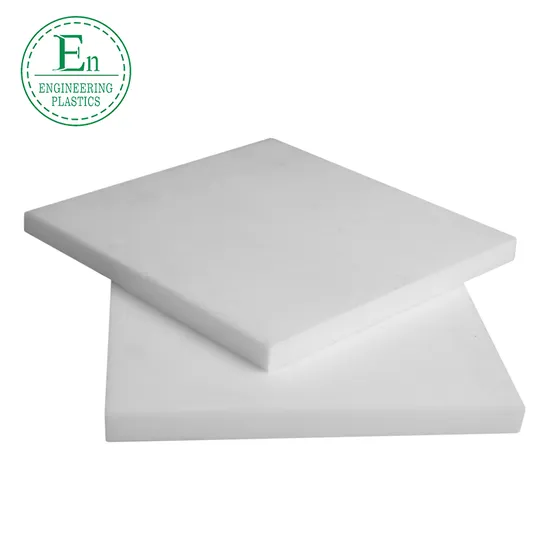

High Performance Custom Made White PTFE Plate

Product Description

High performance custom made white teflon plate

TEFLON® PTFE (Polytetrafluoroethylene) PTFE ( Teflon ) is the mostly consumed category of florin plastics, Which has the lowest coefficient of friction in all the engineering plastics, Whose long-term working temperature can reach 200 to 260ºC. It has the excellent chemical corrosion-resistance, which is able to endure All kind of chemistry material. And it has rather good electricity-resistance, which is not affected by the temperature and is called" Kind of plastics". PTFE plastic has excellent corrosion-resistance, aging-resistance, high(low) temperature resistance, good lubrication and insulation, non-adhesiveness, toxicological harmless. It is widely used in industries like aviation, chemical industry, electric and electronics, bridge, mechanical manufacturing, textile, paper making, ceramics etc.

Application:
1. Aviation industries: Medium lead equipments in hydraulic pressure system and the high,middle,low pressure piping in the cold pressure system of airplane, capacitor and so on.
. 2. Construction and building industries: bridge, tunnel, steel structure house-support, large-scale chemical pipeline, supporting block of store trough, the supporting pedestal of bridge and the bridge-span circumvolving system and so on.
3. Chemical machine equipment industries: widely applied in the bearing of paper-making machine and agricultural machine, as the piston ring, machine tool oriented rail and oriented ring.
4. Electronic and electrical industries: can make insulated wire, capacitor, radio insulated gasket, insulated cable, and the parts of transformer, oxygen sensor, microphone, loudhailer and robot.
5. medical treatment field: PTFE is the totally inert material, which has very strong biology applicability, has not any circadian side-effect to the body. So it can be applied in surgical operation suture for the body parenchyma regeneration.

Color:Natural,White,Black,Coffee and so on.

Size:
PTFE Moulding Sheet: 1000X2000X(Thickness:4-150mm),1000X1000X(Thickness:4-150mm),
1500X1500X(Thickness:4-150mm)

PTFE SKIVED Sheet: Long(10000-30000mm)X Wide(1000-2000mm) X (Thickness: 0.1-6mm)

PTFE Rod: Φ5-Φ200X1000mm

Tube Size: (OD)60-1200 X (ID)30-1100X Length(200-300mm)


Property of TEFLON® PTFE:

Property		Item No.	Unit	Value
Mechanical Properties	1	Density	g/cm3	2.18
	2	Water absorption (23ºC in air)	%	<0.05
	3	Tensile strength	MPa	25
	4	Tensile strain at break	%	>50
	5	Co-efficient of friction (on steel and ground)	-	0.08-0.10
	6	Charpy impact strength (at 23ºC)	KJ/m2	No break
	7	Tensile modulus of elasticity	MPa	700
	8	Rockwell hardness	-	M30
Thermal Properties	9	Thermal conductivity at 23ºC	W/(K.m)	0.25
	10	Melting temperature	ºC	--
	11	Glass transition temperature	ºC	-20
	12	Temperature of deflection(HDT, Method B)	ºC	121
	13	Max allowable working temperature in air for short periods	ºC	260
	14	Max allowable working temperature in air continuously	ºC	230
	15	Coefficient of liner thermal expansion (at 23-150ºC)	m/(m.K)	75x10-6
	16	Flammability	UL-94	V-0/V-0
