Super Large & Heavy Conventional (CNC) Fanuc Controller Roller Cylinder Turning Lathe Torno Machine
| US$158,000.00-300,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
C61200
Type
Horizontal Lathe
Processing Accessory
Conventional Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
1600-25000 mm
Swing Over Carriage
1250 - 2200 mm
Distance Between Centers
4000-25000 mm
Machine Loading
32-63t
Bed Width
1600/2050 mm
Spindle Motor
75/110kw
Transport Package
Wooden Case
Specification
Swing 1600-2500 mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84581900
Production Capacity
200 Sets/Year
Product Description

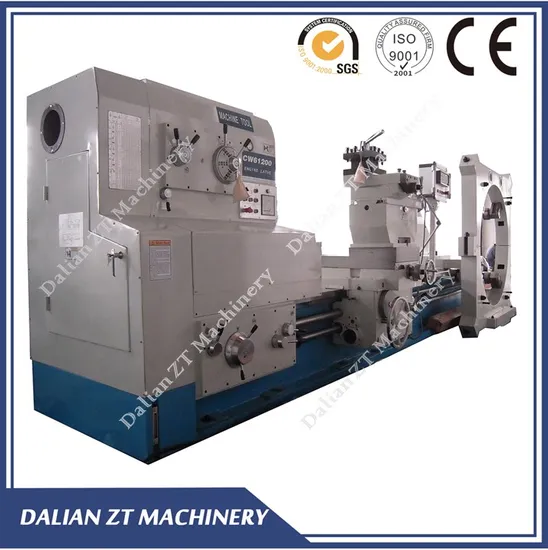

Heavy-duty Lathe
This series of machines is heavy-duty horizontal lathe suitable for rough machining and finish achining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools in facing, external and internal cylindrical turning, and taper cutting.
Machine bed has three guideways or four guideways on one piece casting, or separted bed to support different weight of workpiece load, in a range from 25 tons to 500 tons.
CNC type is also available
| Item | C61160/180/200/220 | C61180/200/220/250 | CW61160/180/200/220 |
| Swing over bed | 1600/1800/2000/2200mm | 1800/2000/2200/2500mm | 1600/1800/2000/2200mm |
| Swing over carriage | 1250/1400/1600/1800mm | 1400/1600/1800/2200mm | 1250/1400/1600/1800mm |
| Max. Turning length | 4000~20000mm | 5000~15000mm | 4000~20000mm |
| Max. Loading between centers | 25/32/45T | 63T | 32/45T |
| Bed width | 1600(3-guideway) | 2050(3-guideway) | 1600(3-guideway) |
| Spindle speed | 0.8~160rpm | 0.4~100rpm | 0.8~160rpm |
| Spindle motor | 75/90kW | 110kW | 75kW |
