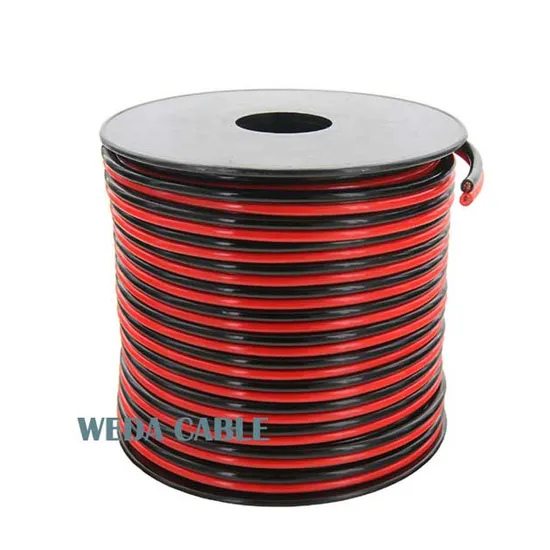

Rvb Twin Parallel Flat Transparent Speaker Auido Wire Cable 1.0mm 1.5mm 2.5mm 4mm

Product Description

Product Description 0.75MM 1.0MM 1.5MM 2.5MM 4MM
20AWG 18AWG 16AWG 14AWG 12AWG
Car Home Audio Speaker Wire Red /black / Transparent Clear /Frosted Audio Cable
Construction :
1.Conductor :Flexible stranded copper conductor(class5)
a. 99.999%OFC (Oxygen free copper)
b. CCA wire(Copper clad aluminum)
c. TCCA Wire(Tinned Cooper Clad Aluminm)
2.Sheath : PVC (Polyvinyl Chloride)
3.Sheath Color For Parallel:
Red&Black ,Transparent with red stripe,White with red stripe,Black with red stripe
Standard:
IEC60227
Technial Characteristic:
a.Temperature Rating :-15°C up to 70°C
b.Voltage Rating:300V/500V
c.Minner Ineer bending radius:4 x over rall diameter
d.Behaviour in free :Flame retardant to IEC 60332-1
Application:
High flexible Parallel Speaker cable & Round speaker cables are ideal for sound and Hi-Fi systems that can be used for creating custom-length speaker patch cables or for cable runs in a home or business. Our professional-grade speaker wire is comprised of oxygen-free copper conductors, ensuring that it delivers audio signals with the highest fidelity.
Specification Parameter :

No.of cores x Nominal section area No.X mm²	Nominal Construction of conductor No.X mm	Nominal Overall diameter mm
OFC Parallel Speaker cable
2x0.50	2X28/0.15	2.3*4.6
2x0.75	2X42/0.15	2.6*5.2
2x1.5	2X30/0.25	3.2*6.4
2x2.5	2X50/0.25	3.8*7.6
2x4.0	2X56/0.30	5.0*10
2x6.0	2X84/0.30	6.0*12
2x10.0	2X142/0.30	7.5*15
2X24AWG	2X11/0.15	1.8*3.6
2X22AWG	2X19/0.15	2.0*4.0
2X20AWG	2X29/0.15	2.2*4.4
2X18AWG	2X47/0.15	2.6*5.2
2X16AWG	2X27/0.25	3.0*6.0
2X14AWG	2X40/0.25	3.5*7.0
2X12AWG	2X47/0.30	4.5*9.0
2X10AWG	2X75/0.30	5.5*11
2X8AWG	2X118/0.30	7.0*14.0

1) Different series of zips and twist wires
2) Product range: 0.35mm2~6.0mm2, such as 0.35mm2, 0.50mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2.
USA standard is also avilable, 10GA, 12GA, 14GA, 16GA, 18GA, 20GA and ultra classic strands
3) Conducot available:100% (Tinned)Bare copper wire,copper coated al,
4) PVC material available:simplex color pvc(Red,Black,Blue,White and so on),transparence and so on
FAQ
Are you a manufacture or a trading company?
WEDA ELECTRONIC is a professional cable manufacturer more than 10 years production experience.
What's your company MOQ?
Different model have different MOQ request, but small quantity for initial cooperation is acceptable.
Whether these products quality assured ?
We have strictly quality control, all products are 100% tested before delivery. Quality is assured.
When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled employees, OEM & customized service is welcome.
Can you send a sample for us to test?
If we have inventory for the cable model that you required, in this way sample is free.
If we don't have inventory, sample and freight cost need to be paid in advance. The sample cost will be return after initial order is put to us.
If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production,70% balance see copy of B/L, bedies, LC is acceptable. Payment terms are negotiable depending on customer's request.
The production time and shipping method.
Goods can be delivered by air, by express or by sea;
Express such as DHL/FEDEX/ UPS/TNT, etc
Production time usually 30 days after receive the deposit and order detail is confirmed.
