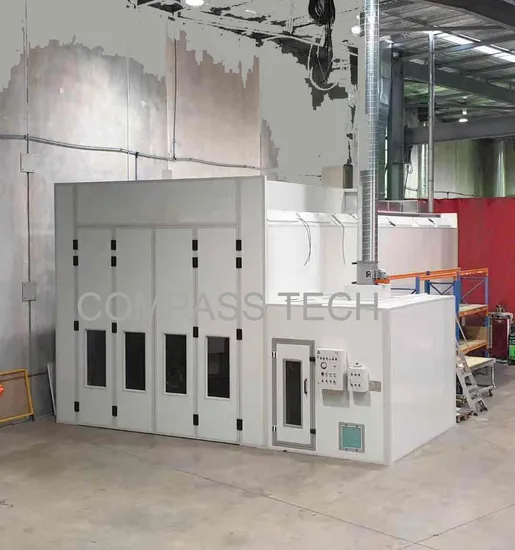

11X5X5m Australia Standard Semi Down-Draft Bus Spray Booth Model Cp-11-5
| US$15,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CP-11-50
Type
Spray Booth
Certification
CCC, CE
Substrate
Steel
Brand
Compass
Coating
Powder Coating
Airflow Direction
Semi-Down Draft
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Total Power
25kw
Transport Package
Steel Frame
Specification
11 x5x 5(m)
Trademark
COMPASS
Origin
China
HS Code
8419399090
Production Capacity
200 Sets / Month
Product Description
CP-15-5 Two Sides Exhausted Bus paint booth product details:Technical data for CP-11-5 spray booth
| Outside Dimension (mm) | 11125×6900×5600 | Inside Dimension(mm) | 11000×5000×5000 |
| Front Door(mm) | 4000×4600(W*H) | Service door(mm) | 800×2000 |
| Total Power | 25kw | ||
| Cabin system | Front door | 4 folded sheet metal formed door | |
| Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.476mm(rockwool panel for option) | ||
| Ceiling panel | Galvanized steel sheet | ||
| Basement | Cement floor prepare by customer | ||
| Door glass | 5mm tempered glass | ||
| Air make-up system | Air ventilation system quantity | one units | |
| Air inlet fan system | 1 set 11KW direct drive turbo fan | ||
| Exhausted fan system | `1 set 11KW direct drive turbo fan | ||
| Air inlet capacity | 35000m3/h | ||
| Exhuasted capacity | 35000m3/h | ||
| Exhausted ducting | Four meters straight ducting and one 135 degrees elbow for each exhausted system | ||
| Purification system | Pre-filter | G3 grade | |
| Ceiling filter | 600G filter EU5 / F5 | ||
| Floor filter | Fiberglass filter | ||
| Exhausted filter | Filber glass and carbon filter | ||
| Heating system | Heat Exchanger | SUS304 232KW stainless heating exchanger | |
| Heating burner | one sets Riello RG5S diesel oil burner(gas burner for option) | ||
| Heating productivity | 260000Kcal/hour | ||
| Spray to baking switch | Pneumatic damper | ||
| Chimney ducting | 4m straight chimney and one chimney hood for each air make-up system | ||
| heating temperature | Maximum 80ºC | ||
| fuel consumption | 8-12L/vehicle | ||
| Lighting system | Ceiling lighting | 8Units, each 4 *16.5W LED lamps. | |
| Side lighting | 8Units, each 4 * 16.5W LED lamps. | ||
| Illumination | 1200LUX | ||
| Control system | Switch controlling | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |
