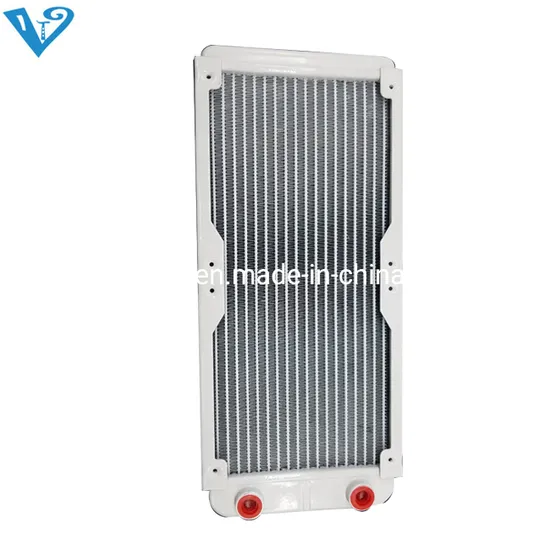

120mm 10 Tubes Water Cooling System CPU Water Heat Sink Radiator
| US$50.00 | 1 Piece (MOQ) |
Basic Info.
Heatsink Material
Copper & Aluminum
Intelligent Temperature Control
Support Intelligent Temperature Control
Noise
Mute
CPU Type
All
Fan Bearing
Ball Bearing
Tube Numbers
8
Multi-Angle
With Multi-Angle
Feature
Cable Management
Tube Diameter
8 and 10mm
Tube Thickness
0.25-1.0mm
Fin Thickness
0.105-0.2mm
Liquid in Tube
Water,Air,Regrigerant,Oil,etc
Refrigerant
R134A.R22.R410A,R407c,Water
Material
Aluminum, Copper
Fan
Axial Fan
Szie
105*105mm
Transport Package
Wooden Box
Specification
Customized
Trademark
Venttech
Origin
China(Mainland)
HS Code
8419500090
Production Capacity
100000PC/Month
Product Description
| CPU water cooled radiator catalog | ||
| Model | Product data | Remark |
| CPU-001 | Core dimension:89.5*99*16mm Outside dimension:131*100*32mm Installation dimension:82.5*82.5mm Inlet and outlet:G 1/4 screw thread | |
| CPU-120A-10 | Core dimension:116*108*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU002B-10 | Core dimension:116*108*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread | |
| CPU-003A-10 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-003B-10 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread | |
| CPU-004 | Core dimension:80*80*16mm Outside dimension:105*83*26mm Installation dimension:71*71mm Inlet and outlet:∅ 8mm | |
| CPU-120A-12 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-120A-18 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-120B-18 | Core dimension:116*119*16mm Outside dimension:156*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread | |
| CPU-240A-12 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-240A-18 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
| CPU-240B-18 | Core dimension:234*118*16mm Outside dimension:275*121*32mm Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread | |
| CPU-360A-18 | Core dimension:354*118*16mm Outside dimension:395*121*32mm Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm | The inlet and outlet diameter of this model has two type, Φ8 and 10mm |
