Automatic Solid Wood Finger Joint Machine Production Line for Woodworking and Door Frame
| US$63,000.00-68,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MHZ1560
Warranty
1 Year
Voltage
3 Phase 380V
Air Pressure
0.6-0.8MPa
Dimension
24610*5220*1440mm
Total Power
48 Kw
Working Thickness
20-80 mm
Working Width
30-150 mm
Max Productivity
6-7 PCS, 6m Length/Each
Strip Length
150-850 mm
Max Press Force
7800kg
Application
Furniture Plant Solid Wood Board Wood Processing
Motor
Servo Motor
Certificate
CE ISO
Transport Package
Wooded Case Package
Specification
3100*1450*1550mm
Trademark
Wardwin
Origin
China
HS Code
84659900
Production Capacity
100/Month
Product Description
| Product Description |

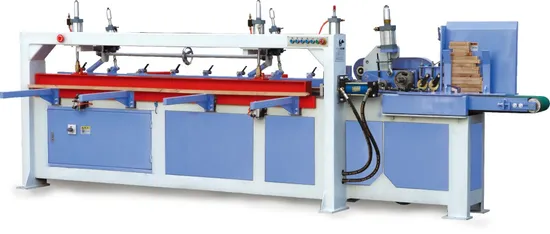

MHZ1560 Automatic Finger Joint Line
This machine with two shaper machines and one pressing machine, connect with different conveyors thus no save labor, this line total power 48.4kw, space 24m, need about 2 operators, can make 6-7 pcs 6m wood per minute.
This machine can make both horizontal and vertical finger joint, just adjust in the machine.
| Product Function |
Strap conveyor--Finger joint shaper--Transition strap conveyor--Finger joint shaper(with gluing)--Roller conveyor--Upender--Chain conveyor--Finger joint assembler
| Product Specification |
| Model | MHZ1560 |
| Operator | 2 persons |
| Productivity | 6-7pc 6m/min |
| Working thickness | 20-80mm |
| Working width | 30-150mm |
| Feeding length | 150-850mm |
| Finished assembly length | 2000-6000mm |
| Shaper working table | 850*600mm |
| Shaper spindle diameter | 70mm |
| Shaper cutter outside diameter | 160mm |
| Shaper spindle speed | 5000rpm |
| Main saw spindle speed | 2840rpm |
| Max. Hydraulic pressing force | 7800kg |
| Shaper machine power | 17.87kw*2 |
| Conveyor power | 0.75+2.25+3kw=6kw |
| Pressing machine power | 6.7kw |
| Total motor power | 48.4kw |
| Machine voltage | 380v 50hz 3phase |
| Working air pressure | 8Bar |
| Pressing method | Cutting first then press |
| Finished wood length tolerance | 1-2mm |
| Machine space | 24610*5220*1400mm |
| Weight | 10000kg |
