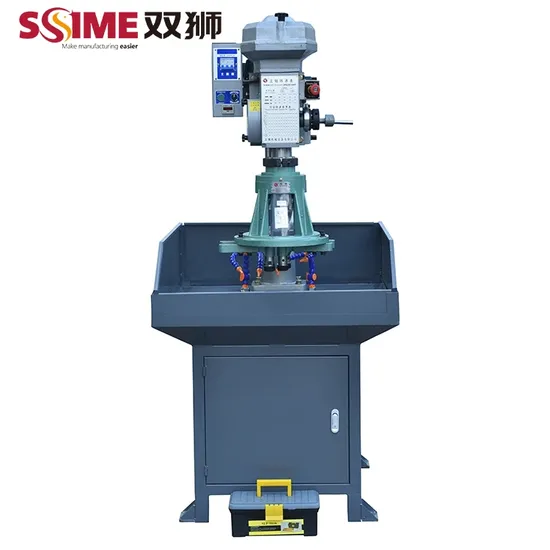

Cn6532 High Quality Automatic Tapping Machine with Workbench for Factory Metal Processing

Cn6532 High Quality Automatic Tapping Machine with Workbench for Factory Metal Processing

US$2,650.00-2,900.00 1 sets (MOQ)

Basic Info.

Model NO.
GT3-231
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
1-10
Hole Diameter
6-32mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight (Kg)
380 Kg
Dimension(L*W*H)
1030*700*1370mm
r.p.m
50Hz(80-280) 60Hz(100-720)
Warranty of Core Components
1 Year
Name
6532 Vertical/Horizontal Tapping Machine
Key Selling Points
Automatic
Screw Tooth Diameter
5--32mm
Voltage
380V/220V
Machinery Test Report
Provided
Drilling Speed
80-280 Rpm
Color
Greyish White/White
Max. Drilling Dia. (mm)
32 mm
Showroom Location
None
Range of Spindle Speed(r.p.m)
80 - 280 r.p.m
Power (Kw)
2.2
Specification
1030*700*1370mm
Trademark
Shuangshi
Origin
Zhejiang, China
HS Code
8459700000
Production Capacity
10000PCS/Year

Product Description

Product Description

Features
Solid Pillar Is Adopted,Stress Is Eliminated By Tempering Treatment, Hard Chrome Is Plated On The Surface,Friction Resistant And Rust Resistant
Company Information
FAQ
1.Can the drilling machine do tapping work?
No,the drilling machine only can holes.
2. Is the spacing of the machine adjustable?
yes,it can adjust to different usage.
3.is the cutting tool easy to break?
It is not easy break if you operate nomally.
4:If we need the non-standard machine,what should we offer you?
The flowing information you need to offer us.
1:the drawing of you product.
2:the samples of you product.
3:the product's height,width and thickness.
4:the max and min.range of the holes.
5:the material's thickness,width,how many drilling and tapping holes for the products.
5:can the non-standard machines both do tapping and drilling work?
YES,it can.
6.Payment term
After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
7. Arrange production
Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days, automatic drilling machine and automatic tapping machine within 15 days.
8. Package
we recommend you to choose wooden box packing to avoid damage during the transportation.
9. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
10.Warranty time
One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.
We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals.
12 months warranty begins from the day when the machine arrives. If it can't work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
11.OEM Service
We accept purchase orders with customers' brand or trade mark.
