CE Proved Automatic Electrostatic Powder Coating Machine for Aluminum

Product Description

Mixer

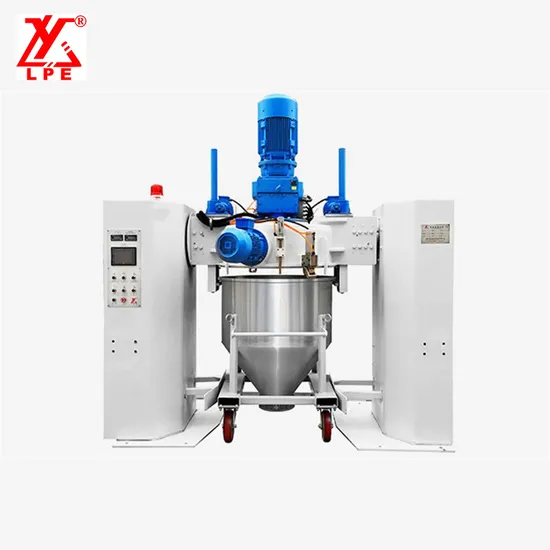

1.container mixer General Description of Automatic Container Mixer:
This serious of container mixer adopts movable container design ,can be applied for the mixing of various kinds of poweder and granular materials . The whole process adopts PLC controlling system ,with homogeneously mixing effect, high production effeciency and no solidified particles .
Working process:
After the cointainer filled with raw materials being pushed to the
working positon ,it will be pneumatically lifted securely connected with the stirring head by the automatic controlling system . The stirring head will tilt together with the container meanwhile , then the mixing blade brings the material into rotary and centrifugal movement with geometrical circle , which ensures optimal mixing result. The container then returnes to the starting position after mixing process completed .
Features Automatic Container Mixer:
1. Processed controlled by PLC ,high automation
2. Mixing during cointainer tilting
3. Homogeneneous mixing High production efficiency
4. No leakage and solidified particle
5 .Pneumatic positioning ,clutching and lifting
6. Easy to clean and maintain
7 Safe to operate
8 Several containers for ciecular operation ,easy color changing
Main Technical Parameter of Automatic Container Mixer:

Model	Volume (L)	Mixing Powder (kW)	Crushing Power (kW)	tilting Power (kW)	Dimension (MM)
FHJ-150	150	5.5		0.55	1200*1420*2000
FHJ-300	300	11	4	1.1	2400*1700*2600
FHJ-600	600	18.5	5.5	1.1	2700*1800*2950
FHJ-1000	1000	30	7.5	1.5	2900*2000*3300
FHJ-1500	1500	37	7.5	2.2	3300*2200*3400
FHJ-2000	2000	55	7.5	3.0	3500*2400*3600

2.High speed pre-mixer
High Speed Mixer Powder Coating Mixing Machine
Product Description of High Speed Mixer Powder Coating Mixing Machine
This series of mixer has the function of both mixing and crushing applicable for various powder and solid chemical materials. It adopts advanced sealing design to avoid powder leakage.
Well-sealed and no leakage and solidificatioin.
Mixing time controlled automatically with short time and homogeneous mixing effect.
Low temperature, high effciency, easy color change and maintenance.
Safe to operate
Main Technical Parameters of High Speed Mixer Electrostatic Powder Coating Machine For Powder Coating

Model	Volume (L)	Mixing Time (MIN)	Mixing Power (kW)	Crushing Power (kW)	Dimension (MM)
PHJ-10	10	3-5	1.1	1.1	600X550X880
PHJ-30	30	3-5	3.0	4.0	700X600X800
PHJ-100	100	3-5	5.5	4.0	1450X1000X1290
PHJ-150	150	3-5	5.5	4.0	1480X1000X1290
PHJ-300	300	3-5	11	4.0	900X1350X1800
PHJ-500	500	3-5	22	2X4	1300X2000X1800
PHJ-800	800	3-5	30	2X4	1600X2000X1950
PHJ-1000	1000	3-5	45	2X7.5	1800X2200X2360

Twin Screw Extruder
Main Technical Parameter

Model	Output (kg/hr)	Srew Speed (rpm)	L/D Ratio	Motor Power (kW)	Heating Power (kW)	Dimension
SLJ-50	400-500	0-800	14-48 : 1	37	10	2700* 1400* 1800
SLJ-65	600-800	0-800	14-48 : 1	55	12	3400* 1150* 1700
SLJ-75	700-1000	0-800	14-48 : 1	90	16	3400* 1150* 1800
SLJ-95	1000-1500	0-800	14-48 : 1	90	18	3900* 1200* 2000

This series of extruder, with high capacity, is an ideal equipment for extruding various chemical materials, which can be fully hot melted to achieve excellent dispersed and kneading effect.
Specifications of Double Screw Extruder for Powder Coating Twin Screw Extruder
SLJ extruder is an ideal equipment for extruding various chemical materials.
SLJ-H Series Twin Screw Extruder
This series of extruder is an ideal equipment for extruding various chemical materials, with high capacity. The raw material can be mixed homogeneously to achieve excellent dispersed and kneaded effect.
Features Of Double Screw Extruder for Powder Coating Twin Screw Extruder:
* High precision barrel with modular combination and horizontally opposite open, easy color changing
* Barrel with high efficient heat exchanging and automatic controlling system, no solidification
* Screw elements can be combined freely according to technial requirements
* Screw, barrel and conveying parts are made of special alloy material, to make the machine durable.
* Strong self-cleaning ability, fine shearing and high mixing efficiency
* Gear box equipped with a separate lubrication and cooling system, has advantages of high torque, low noise≤60DB, high wear resistance, long life
* With touch screen computer controlling system, safe to operate
Cooling Belt
1.Powder Coating Water Cooled Cooling Belt
Powder coating cooling belt
This series of cooling belt integrates the process of rolling, cooling and crushing. The hot-melt materials drop down onto the stainless steel belt under which there is chilling water sprayed; the crusher will break the squeezed materials into flakes with thickness of 1-2mm.
Main Technical Parameters of Powder Coating Water Cooled Cooling Belt:

Model	Output (kg/hr)	Belt Length (mm)	Belt Width (mm)	Motor Power (kW)	Dimension (cm)
YPW-526	50-100	2600	500	0.75	400*120*160
YPW-640	200-300	4000	600	1.5	500*130*160
YPW-850	400-600	5000	800	2.2	600*150*180
YPW-1070	600-800	7000	1000	2.2	800*170*200
YPW-1270	800-1200	7000	1200	3.0	800*190*200

2.High Efficiency Powder Coating Equipment Air Cooling Belt
YPJ SERIES AIR COOLING BELT
Features of High Efficiency Powder Coating Equipment Air Cooling Belt :
1) Stainless steel belt strips and semi-hermetic cooling system
2) Adjustable thickness of chips and rollers speed
3) Roller and crusher equipped with mechanical overload protection
4) Various models to meet different extrusion output requirements
5) Safe to operate
This series of cooling belt is composed of cooling rollers, stainless steel strips and crushing rollers. The hot-melt materials discharged from extruder will be squeezed and crushed into chips with thickness of 1-1.5mm. Air filtration and heat exchange system can be selectively equipped.
Main Technical Parameters of High Efficiency Powder Coating Equipment Air Cooling Belt

Model	Output (kg/h)	Belt Effective Length (mm)	Belt Effective Width (mm)	Roller Diameter (mm)	Motor Power (KW)	Fan Power (KW)	Dimension (mm)
YPJ-103	30-50	1300	300	106	4-0.55	0.12-0.25	3000*610*800
YPJ-305	60-100	3000	500	130	9.2-1.1	0.12-0.25	4000*840*920
YPJ-408	150-250	4600	800	159	9.2-1.1	0.12-0.25	5040*1142*1008
YPJ-5010	250-350	4600	1000	219	1.1-1.5	0.12-0.25	5300*1380*1330
YPJ-5012	400-600	4600	1200	219	1.1-1.5	0.12-0.25*2	5300*1380*1310
YPJ-6012	500-800	5800	1200	316	1.5-2.2	0.12-0.25*2	6300*1684*1108
YPJ-7012	800-1000	6800	1200	418	2.2-3	0.12-0.25*2	6000*1500*1600

3.Large Capacity Powder Coatings Cooling Belt With Crusher
Product Description of Large Capacity Powder Coatings Cooling Belt With Crusher:
Powder coating cooling belt
This series of cooling belt integrates the process of rolling, cooling and crushing. The hot-melt materials drop down onto the stainless steel belt under which there is chilling water sprayed; the crusher will break the squeezed materials into flakes with thickness of 1-2mm.
Main Technical Parameters of Large Capacity Powder Coatings Cooling Belt With Crusher:

Model	Output (kg/hr)	Belt Length (mm)	Belt Width (mm)	Motor Power (kW)	Dimension (cm)
YPW-526	50-100	2600	500	0.75	400*120*160
YPW-640	200-300	4000	600	1.5	500*130*160
YPW-850	400-600	5000	800	2.2	600*150*180
YPW-1070	600-800	7000	1000	2.2	800*170*200
YPW-1270	800-1200	7000	1200	3.0	800*190*200

Grinding system(ACM)
Grinding System for Powder Coating
Grinding system
This series of grinding system has functions of high-speed crushing, air classifiering , double cyclone separating, screening, and fine powder collecting, etc., with noise ≤80DB. Best particle size distribution with particle size which can be adjusted freely from 18-60um. This series grinding system has good ATEX anti-explosion design and performance, which has been evaluated by international authorized orgnizations.

Features of Grinding System for Powder Coating
1. Low noise
2. Adjustable particle size distribution
3. High output
4. Temperature monitoring of mill chamber
5. High recovery, ≥ 98%
6. Easy for cleaning and maintenance
7. In accordance with the standard of European ATEX anti-explosion design
8. Safe to operate
9. Accurate weighting system for the finished powder coating.

Main Technical Parameter of Grinding System for Powder Coating

Model	Output (Kg/h)	Mill Speed (rpm)	Motor Power (kW)	Classifier Motor (kW)	Fan Power (kW)	Dimension (mm)
LYF-10	150-200	7000	7.5	1.5	7.5	6000*2000*2200
LYF-20	250-350	6000	15	3	18.5	7000*2800*3000
LYF-30	350-500	5600	18.5	4	22	8000*2800*3000
LYF-45	500-600	5600	22	4	37	9000*3500*3500
LYF-60	800-1200	4800	37	5.5	55	10000*3500*3500
LYF-70	1000-1500	4800	37	5.5	75	11000*3500*3500

Details about Grinding System for Powder Coating
1. The main mill disc with pins have passed the testing through the balance measuring instrument. This design can reduce the noise and attrition.
2. The silencer on the end of the fan can reduce the noise effectively.
Our Services
According to different customer requirements, we can provide integral design and production as follows:
Consultation: We can offer plant designers, powder experts, mechanists, electricians and consultants in other industries based on good contact with customers;
Modernization: We can design and make automatic powder coating production lines for customers;
Maintenance: We can provide requirement and standard-oriented maintenance packages, such as inspection of spare parts and maintenance of gear boxes;
Training: We can provide all kinds of trainings, e.g. installation training, commissioning training and maintenance training.
Have any demand please contact me:Tina Zhu 008615688555980(Telephone)
