Indoor 3D Water Vapor Electric Fireplace with Mutil-Color Cool Flame

Product Description

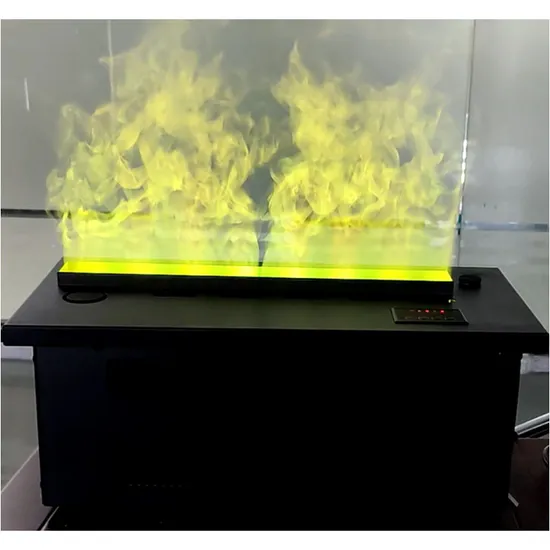

Product shows
Practice of reserved air inlets in the fireplace
Installation instructions
Construction of embedded groove of 3D furnace core: Before buying it you can ask the sales customer service for construction reference drawing and make grooves according to the construction reference drawing provided by the customer service.
Matters needing attention:
1. Fire viewing area of the fireplace should be made of moisture-proof materials. If it is made of wood, the wood should be painted with waterproof paint.
2. Construction reference size of the four grooves should the recommended size, which can be adjusted according to actual situations on the site.
3. The ventilation opening shall be reserved in interior places of the groove for air convection between the vent and the outside air. There is no limitation of the orientation and its total length shall be greater than 3/2 of the total length of the fireplace and it shall be as high as 20MM.
4. A three-eye socket of 220V shall be reserved inside the groove.
5. It is recommended to decorate the background of the flame viewing area with dark materials instead of light reflective materials.
Installation method: (1)Unwrap the packing (2)Plug the power supply and test it with water (3)Drain the water after the test (4)Insert inner power supply of the groove and well place the fireplace.
3D furnace core installation diagram
Technical parameters

Rated Voltage	AC 220V-240V
Rated frequency	50-60HZ
Input power	230W(The length is 1 meter)
Work temperature	+1ºC~+50ºC overheating protection 50ºC
Maximum evaporation water consumption	200ml/h(The length is 1 meter)
Optimum depth of fogging water	5-7cm(Too deep of too shallow water level can Affect the effect of the flame)
Water quality requirement	Drinking pure water of filtered tap water

Note: If you need to customize the size, please input the power and water consumption and consult the customer service.
Description of appearance
Control instructions
Product operation instructions The product needs to be placed horizontally. If it is inclined, it may result in poor atomization or prevent fog formation. Before staring the product, connect power cord o the power supply, and you will hear a beeping sound for about I second. At the same time, remove the lid on the water tank and fill the tank with pure water until you hear a beep for about five seconds. Then stop filing water (A beeping sound represents that he amount of water injected has achieved the 3D fame atomization effect). Then, cover the small water cover and press the switch button. Wait for about 30 seconds and the 3D flame will be displayed. The 3D flame will slowly consume the water in the tank during its usage (the rate of water consumption is proportional to the burning intensity of the 3D flame. The more vigorous the fire, the faster the water will be consumed). When 3D flame is found to be weak, it indicates low water volume and the need for further water injection. Users only need to open the small water cover and inject water until they hear the beeping sound for 5 seconds, then stop adding water. Cover the small water cover and the 3D flame will naturally flourish. The machine is equipped with water pump injection port and manual injection port. Customers can choose the water injection port according to their own demands (If there is a power outlet near the product, you can choose a convenient and quick water injection outlet. If there is no power outlet near the product, you can choose a manual water injection outlet). The product package is equipped with corresponding manual and electric water injection tools. If water of the product needs to be drained, customers can use the pump equipped with the product to drain the water in the water tank from the manual outlet. The product can be slightly tiled to the water drainage outlet for 5-10 degrees during the drainage. Cold weather will affect 3D flame fire making effect. A small amount of hot water can be injected into the water tank to ensure stable atomization so as to keep the flame burning brightly. If there are slight fan rotation sounds or water drop sounds when the product is used, it indicates that it is working normally. If the low-grade flame effect is used for a long time, the atomized water vapor emitted from the eruption will disperse slowly. Besides, there may be slight water drop deposition on the cover surface which is a normal natural phenomenon.
Description of product configuration

Model	Semi-automatic HK-03		Matters needing attention
Outer container material	1.2mm cold rolled steel		1. When water is injected, after the product gives a beeping sound for 5 seconds, please stop adding water. At this time, the water tank is full of water and can be started up to work normally. Do not continue to fill water when it is full, otherwise, water will overflow the tank and damage the parts. 2. If you need to move the product, please drain water in the tank. Otherwise, water in the tank will leak out due to the imbalance between two sides when the product is moved, which will damage the machine parts.
Water tank material	SUS 304 stainless steel
Outer container process	Matte black scrub process
Operation mode	Button + remote control
Water adding method	Use electric pump to and water	Add water manually
Placement position	Dark backgrounds with no light or direct sunlight
Service environment	Space with relatively stable air flow(glass shall be installed when there is large air flow to prevent wind blowing)
Requirement of opening	Ventilation should be done.There is support logistics at the bottom of the hole. The cover plate should not be used to bear forces of the whole machine.
Full water burning time	10-30 hours
Rated voltage	220V
Functional configuration	Manually add water, use external pump to add water; reminder of filled water; remote control; key control; atomized water shortage protection
Accessories of the product	Instruction book; warranty card; certificate of quality; remote control unit; measuring cup and funnel; electric water pump; special pipe; water pump; outfit
Quality certification	Domestic and foreign quality certifications of CE,MA,ROHS

Where shall we put the fireplace?
Wood fireplace VS Electric fireplace
Our Workshop
Packing & Shipping
Our service
About us
We are a professional manufacturer of producing remote control board/PCBA of all kinds of fireplaces and appliances.Based on your product features, we can provide remote control program such as remote/TC/phone app remote control your fireplace. We have R&D team,we can design hardware control board as well as software device at your requirements.
Quality Policy
We have Systematic and ISO certified Quality Control system. We always supply the material on 100% Quality Guaranty. High quality guarantee,Efficient and competitive quotation.Your satisfaction is our greatest achievement.
FAQs
Is an Electric Fireplace Right for You?
An electric fireplace is one of the most convenient types of hearth appliance. Electric fireplaces require no venting, they can be placed almost anywhere, and they plug right into most electrical outlets. Many of them even come with their own mantel cabinets, literally allowing you to create an entire hearth with just one purchase.
How do you turn off heat and use flame only?
Operation instructions to turn the heat off and keep the flame on can be found on each page of our products.
What is difference of different type fireplace?
Our fireplace divide into wall-mounted fireplace, embedded fireplace and free-standing fireplace.Wall-mounted type will hang on wall ; Embedded type will insert into wall ; Freestanding type will be used alone, is portable.
Is there a fireplace that needs no vent that I can hang on the wall and that doesn't need me to open the wall?
Yes, we have the fireplace core to sell only, but we recommend to put it into the wall because it will look more elegant.
What size do you have?
We have some models for standard size . If you want others size, we also can customized for you. Just please tell me your size in advance.
What is voltage of fireplace?
Our voltage can be 110V, 220V. Others voltage also can do. For example, 380V can be OK .
Could you help to shipping to us?
Yes, We can help you to shipping to you. If your quantities is one or two sets, we will shipping by express, such as DHL , TNT , FedEx, etc. If your quantities is bigger or container, we can ship by sea.
Do you have manual of fireplace?
Yes , we have manual in English.
Could you help us to install fireplace?
Yes, installation of fireplace is simple. We can make drawing for you, based on your requirements.
How about after-sales service?
Our warranty is one year after you buy our fireplace. Maintain is for life. If glass or others parts is damaged within one year, you need replace them, we send to you for free.
