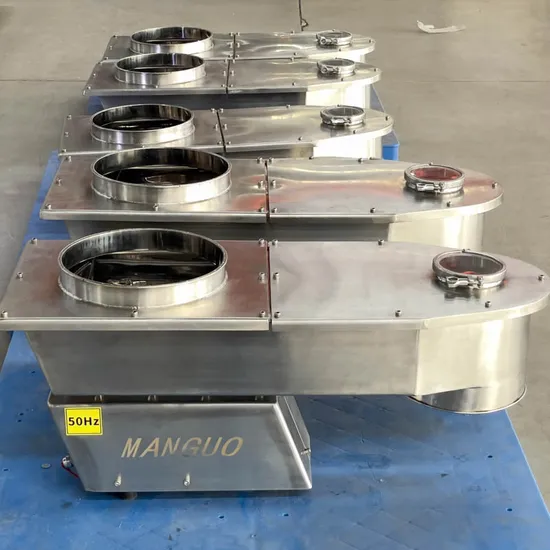

Electromagnetic Conveyor
| US$700.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Electromagnetic conveyor
Structure
Vibrating Conveyor
Material
Stainless Steel
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport
Condition
New
Product Type
Vibrating Conveyor
Product Name
Measuring Pocket
Function
Weighing and Conveying
Usage
Powder Particles
Operation Method
Automation Control
Feature
High Efficiency Low Cost
Advantage
Material Unobstructed Transportation
System Characteristics
High Feeding Accuracy
Transport Package
Wooden Box
Specification
customizable
Trademark
Manguo
Origin
China
Production Capacity
500pieces/Year
Product Description
· Operational principleIt adopts a dual mass point elastic system capable of directional forced vibration. The system operates under low critical sympathetic vibration and utilizes an electromagnetic exciter to drive the tank to vibrate back and forth at a certain angle, thereby making the materials move along the tank.
· Applications
The self-synchronizing inertia vibrating conveyor is a conveyor that uses two vibrating motors to make the trough vibrate in a certain inclined direction. The material is sometimes thrown upwards by the trough for parabolic movement and sometimes falls back to the bottom of the trough. Each time the material is thrown up, it moves forward a small distance, thus achieving continuous conveying of the material.
· Design Highlights
| it is a new type of feeding equipment with the following features: |
| (1) It has a small size, lightweight, simple structure, convenient installation and maintenance, and low operating cost. It is designed without any rotating parts and lubrication is not required. |
| (2) It is based on the sympathetic vibration principle in vibrational science. Dual mass points operate under low critical sympathetic vibration to reduce electrical energy consumption. |
| (3) It can instantly change, start and stop the material flow to achieve high-precision feeding volume. |
| (4) The wear of the feed tank is reduced since the materials in the feed tank are continuously thrown up and jump forward in a parabolic trajectory during the feeding process. |
| (5) It is not suitable for scenarios with explosion-proof requirements. |
| (6) Operating conditions of electrical control devices: A. The altitude shall not exceed 1000m. B. The temperature of the surrounding medium shall be ranged from -20ºC to 4ºC. C. The relative humidity shall not exceed 85% if the surrounding medium temperature is 25ºC. D. There shall be no media around with severe corrosiveness or affecting electrical insulation performance. |
