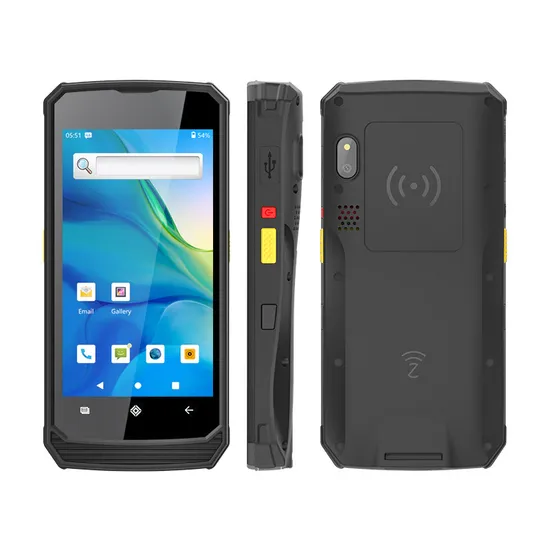

Uniwa M580 Android Barcode Scanner Rugged Handheld PDA
Basic Info.
Model NO.
UNIWA M580
Scan Speed
100 scans/sec
Scanning Light Source
Laser
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB, IEEE
Scanning Element
Laser
Optical Resolution
600dpi
Application
Commercial Application
Color
Black
Shell Material
TPU+PC
Net Weight
303G (Including Battery)
Style
Bar
OS
Android 10
CPU
Mt6761
Transport Package
Carton
Specification
165*78*23mm
Trademark
UNIWA
Origin
China
Production Capacity
10000
Product Description
UNIWA M580 Hot-swap Power Android Barcode Scanner Rugged Handheld PDA1) 500mAh+3900mAh Double Batteries2) Android 10.0 OS3) 8MP Back Camera4) 2GB RAM+16GB ROM5) IP65 Waterproof6) Built-in Honeywell 2D Module7) Global Frequency Bands8) 2.4GHz/5GHz Dual Band WiFi9) Support GPS/GLONASS/BDS10) NFC/LF/RFID Modules Optional| Model No. | UNIWA M580 |
| Waterproof Level | IP65 Waterproof |
| Dimensions | 165*78*23mm |
| Net Weight | 303g (Including battery) |
| Shell Material | TPU+PC |
| Service Provide | Unlocked |
| Style | Bar |
| Band | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz | |
| 4G: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20; TDD-LTE: B38/B39/B40/B41 | |
| SIM Card | Dual Nano SIM dual standby( or 1 Nano SIM+1 TF card) |
| OS | Android 10 |
| CPU | MT6761 Helio A22 Cortex A53 quad core, 2.0GHz; GPU:PowerVR GE6300, 660MHz |
| RAM | 2GB RAM (4GB optional) |
| ROM | 16GB ROM (64GB optional), support TF card up to 128GB maximally |
| Screen | 5.0 inch 16:9 IPS capacitive touch screen, 1280*720px, 320dpi |
| LED Indicator | RGB |
| Data transfer | USB Type-C/BT |
| Mobile internet | WAP/WiFi |
| Message | SMS/MMS |
| Input | Handwrite/Keypad |
| Buttons | Volume button, 2x scan buttons, power button |
| Camera | Single camera, 8MP back camera with flashlight |
| WiFi | Yes, IEEE 802.11 a/b/g/n/ac, support 2.4/5GHz dual band wifi |
| GPS | Yes, also suppport A-GPS/GLONASS/BDS |
| BT Version | V4.2 |
| 2D Module | Built-in Honeywell 3603 module |
| NFC | Optional (NXP NQ310) |
| LF | Optional |
| RFID | Optional |
| Sensor | Proximity sensor, light sensor, acceleration sensor, gyro sensor, magnetic field sensor |
| Battery | Built-in 500mAh + removable 3900mAh li-polymer battery |
| Working time | Up to 12 hours |
| Standby Time | Up to 350 hours |
| Other Features | Email, calendar, calculator, wifi hotspot, Play store, OTG function, E-compass etc. |
| Languages | English, Afrikaans, Bahasa Indonesia, Bahasa Melayu, Bosnian, Catala, Cestina, Dansk, Deutsch, |
| Eesti,Espanol, Filipino, French, Hrvatski, Zulu, Italiano, Kiswahili, Latviesu, Lietuviu, Magyar, | |
| Nederlands, Norsk, Polish, Portuguese, Romana, Rumantsch, Slovencina, Suomi, Svenska, | |
| Veitnamese, Turkish, Greek, Bulgarian, Russian, Serbian, Ukrainian, Hebrew, Bengali, Arabic, | |
| Persian, Hindi, India Urdu, Thai, Korean, Japanese, Simplified/Traditional Chinese | |
| Color | Black |
| Accessories | 1 x USB charger (5V/2A) |
| 1 x Type-C USB cable | |
| 1 x Users manual |
