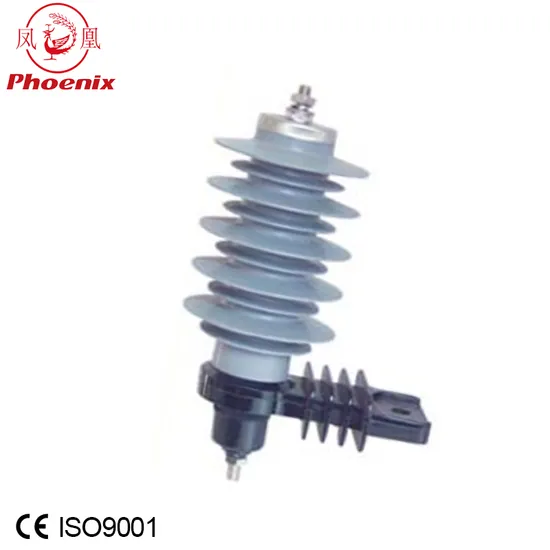

Phoenix 5ka 10ka Surge Protection 10kv 12kv 15kv 24kv 33kv Export Type ZnO Lightning Arrester with Disconnector

Product Description

Product Description Lightning Arrester: A kind of electrical apparatus used to protect electrical equipment from the hazard of high transient overvoltage during lightning strikes, limit the follow current time, and often limit the follow current amplitude. Sometimes, the lightning arrester is also called overvoltage protector or overvoltage limiter.
Product Parameters

Model	Rated Voltage	Max. Contiuous Operation Voltage	Shock current of steep slope residual pressure	Litning impulse residual pressure	operation impulse residual pressure	Square channel flow capacity	Big current impulse withstand voltage
	kV(irm.s)			V	V	A	kA
HY5W-3	3	2.55	11.3	9	8.9	150	65
HY5W-6	6	5.10	22.6	18	16.8	150	65
HY5W-9	9	7.65	33.7	27	23.8	150	65
HY5W- 10	10	8.4	36	30	26.4	150	65
HY5W- 11	11	9.4	40	33	30	150	65
HY5W- 12	12	10.2	42.2	36	31.7	150	65
HY5W- 15	15	10.7	51	45	38.5	150	65
HY5W- 18	18	15.3	61.5	54	46.5	150	65
HY5W- 21	21	17.0	71.8	63	54.5	150	65
HY5W- 24	24	19.5	82	72	62.6	150	65

Packaging & Shipping
Company Profile Phoenix Electric Power Co., Ltd. is located in Leqing City, Zhejiang Province. It is a leading electric power enterprise with two major production and research and development bases in Zhejiang and Jiangsu, integrating research, development, production, and sales. Phoenix Company′s main products include power fittings, high-voltage electrical equipment, cable accessories, electrified railway contact network accessories, and plastic products. It was formerly a centralized unit of the Ministry of Electric Power Industry and a copper and aluminum parts manufacturing base in Zhejiang Province. It is a QA1 level supplier for China′s nuclear industry construction, and a centralized bidding and procurement enterprise by State Grid and Southern Power Grid Corporation. The product is widely used in national key projects such as the Two Grid Transformation, Huhutong, West East Power Transmission, Three Gorges Project, and Daya Bay Nuclear Power Plant, and is exported to more than 40 countries and regions in Asia, Europe, the United States, and Africa. Phoenix brand cable terminals, power fittings, cable accessories and other products enjoy a high reputation both domestically and internationally.
