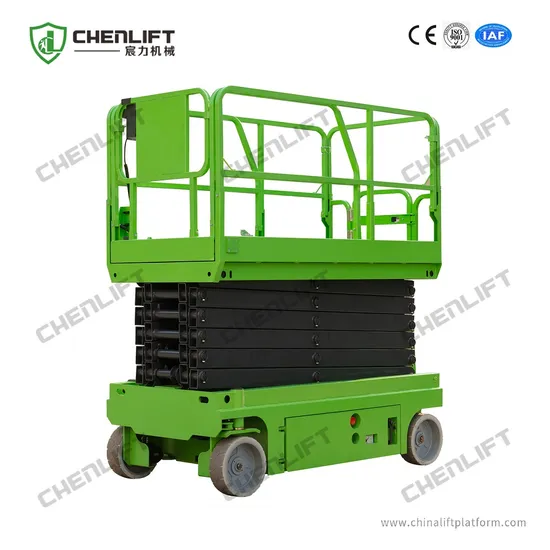

CE Certified Full Electric Self Propelled Scissor Lift

Product Description

CE Certified Full Electric Self Propelled Scissor Lift
1. Self propelled scissor lift ,with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk ,easily moved, spacious working platforms, high working efficiency.
3. Scissor lift can be move while extended and controlled from platform by the operator.
4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor. Lift-down,turning, forward and backward movements can be easily operated by one person.
Specification

Model	MX580S	MX600SN	MX800S	MX1000S	MX1200S	MX1400S
Platform Capacity	230 kg	500 kg	320 kg	320 kg	320 kg	227 kg
Extension Capacity	113 kg	113 kg	113 kg	113 kg	113 kg	113 kg
Working Height max	7.80 m	7.80 m	9.80 m	11.80 m	13.80 m	15.80m
Platform Height max	5.80 m	5.80 m	7.80 m	9.80 m	11.80 m	13.8m
Overall Length	1.86 m	2.475 m	2.475 m	2.475 m	2.475 m	2.84 m
Overall Width	0.76 m	1.18 m	1.18 m	1.18 m	1.18 m	1.39 m
Overall Height( Rails Up)	2.18 m	2.24 m	2.36 m	2.48 m	2.6 m	2.59 m
Overall Height (Rails Down)	1.84 m	1.73 m	1.85 m	1.97 m	2.094 m	2.05 m
Platform size (L×W)	1.67×0.74 m	2.3×1.18 m	2.3×1.18 m	2.3×1.18 m	2.3×1.18 m	2.64×1.13 m
Platform extension size	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m
Ground Clearance ( Stowed)	0.083 m	0.1 m	0.1 m	0.1 m	0.1 m	0.1 m
Ground Clearance(Raised)	0.016 m	0.02 m	0.02 m	0.02 m	0.02 m	0.02 m
Wheelbase	1.36m	1.92 m	1.92 m	1.92 m	1.92 m	2.26 m
Turning radius (inside)	0	0	0	0	0	0
Turning radius (outside)	1.64m	2.35 m	2.35 m	2.35 m	2.35 m	2.7 m
Lift/Drive Motor	24V/3.3kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw
Travel Speed ( Stowed)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Travel Speed ( Raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Raise / Lower time	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Power Source	4×6V/225ah	4×6V/200ah	4×6V/200ah	4×6V/225ah	4×6V/225ah	4×6V/300ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Gradeability	25%	25%	25%	25%	25%	25%
Maximum Working Slope	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tire size	Φ305×100mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Weight	1500kg	2300kg	2600 kg	2750 kg	2950 kg	3320 kg

Details
Safety Precaution Auxiliary Lowering Devices Anti-burst System Emergency Stop Button Tilting Protection System Charging Protection System Automatic Pothole Protection Automatic Braking System Buzzer and Horn Our Company
As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.
Certificates
Factory Equipment
Client &Exhibition
Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
