Oil&Gas Steel Pipeline Steel Pipe 3-Layer Anti-Corrosion Coating 3PE 3lpe Machine

Product Description

Product Description
Oil&Gas Pipeline Steel Pipe Anti-Corrosion Coating 3PE 3LPE 2PE 2PP FBE machine
Description
3PE 3LPE 2PE 2PP FBE Steel pipe coating machine is used for applying anti-corrosion coating on steel pipes, which are widely used in varieties of engineering construction, especially in the heating engineering, gas&oil field, water supply engineering.
According to different production requirements, on the basis of different configurations, the machine can coat the pipes with FBE, 2-layer PE, 2-layer PP, or 3-layer PE anti-corrosion coating.

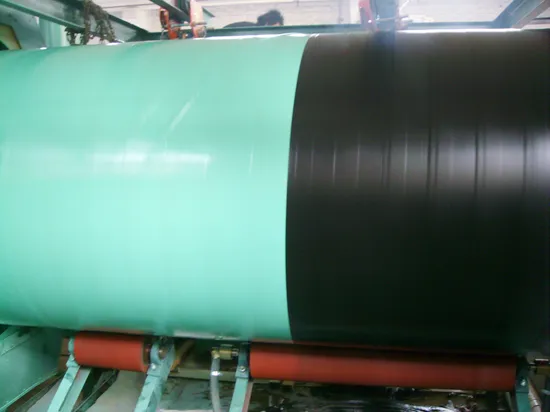

3-layer PE anti-corrosion coating consists of the first FBE coating, middle adhesive layer, and outer polyethylene layer.
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipelines, urban gas supply, water supply pipes, and other fluid transmission pipelines. 3-layer PE anti corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.
The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.
Technological processes
Upload pipes→conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
Main Equipment List

No.	Name	Set
A. Derusting Equipment
1	Pipe-conveying Equipment	1
2	Shot Blast Cleaning Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Coating transfer equipment	1
2	IF heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	SJ-65/30 Extruder	1
6	SJ-180/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe platform	1
2	Post-rust removal transition platform	1
3	Product tube storage platform	1
4	Hydraulic Equipment	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC	1
E.Compressed air Equipment
1	Screw Air Compressor	1
2	Cold dry machine	1
3	Precision filters	3
4	Gas tanks	1

Our factory
Our team
Workshop
Customer visiting
Delivery
Exhibition
