400~1200kg Low Price Glass Marble Metal Sheets Vacuum Lifter for Sale

Product Description

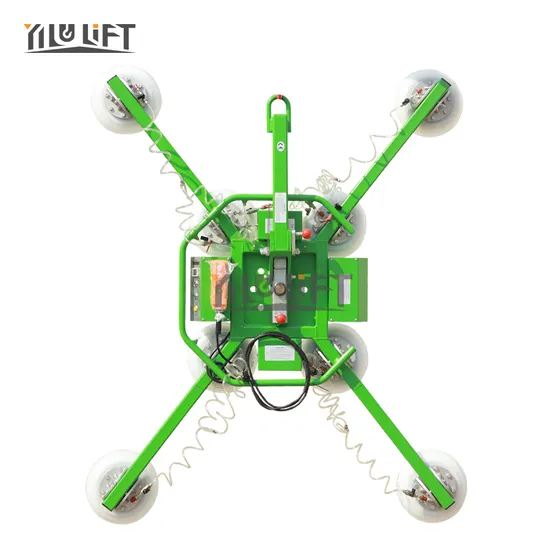

YILU X Shape Manual Vacuum Suction Cups Lifter

YILU X vacuum lifters use vacuum power to grip and lift loads. The vacuum technology offers sustainable, safe and efficient handling of most types of goods. Vacuum lift systems make lifting easy for everyone, regardless of their size, strength, or gender.

Product Parameters

Model		GL-SC-400X	GL-SC-600X	GL-SC-800X	GL-SC-1000X	GL-SC-1200X
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	/	4	6	8	10	12
Single Cup Size	mm	300	300	300	300	300
Single Cup Capacity	kg	100	100	100	100	100
Rotation	/	360° Electric rotate
Tilting	/	90° Elextric
Volte	V	DC12
Charger	V	AC220/110
Weight	kg	70	90	100	110	120
Sucker Frame Size	mm	850*750*300	1800*900*300	1760*1460*300	1900*1600*300	1900*1600*300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired/Wireless Remote Control
Package Size	mm	1230*910*390
G.W	kg	97	110	123	150	163

Features:
1)Detachable Arm to Reduce Size. Can be loaded into cars for easier transport.
2)Independent Air Inlets. Each suction cup can be disabled individually.
3)Remote Control Optional. Can be used to initiate or release sucking action.
4)High Configurations.American THOMAS vacuum pump, Japan Panasonic digital display, battery level gauge
5)Pressure Maintains itself even when power fails.
6)High efficiency and little noise. It works by battery.
7)Higly Flexible. It can be rotated vertically and horizontally.
8)Long Working Hours. Once fully charged, it operates days nonstop.
9)Stable and safe pneumatic pressure. It's equipped with air pressure auto regulating system
Detailed Photos
Control Panel with Janpan Panasonic Vacuum Gauge:

Wired Remote Control
American Silicon Suction Cups:
Ergonomic vacuum lifting equipment can revolutionize material handling in your business. The YILU Multi-functional lifter is the leading vacuum lifting device in the industry. It will lift, lower, move and turn most types of goods that weigh up to 1200KG, in all possible environments, and in all working conditions.
YILU vacuum lifters are robust and reliable tools that make lifting easy, for everyone. No matter who you are or what you need to lift, our vacuum lifters will make lifting easy and efficient. What was once a two-man job can often be carried out by one operator when incorporating a YILU vacuum lifter into your workflow. Using one of our vacuum lifters for your lifting needs will help your operations achieve a combination of efficiency and ergonomics that will boost your business.


Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the vacuum lifter family to better serve our customers unique needs. If you have a lifting need, we have a solution.

FAQ

1: How to place an order?

Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP)

3: How should I pay?

Answer: We accept wire transfer; letter of credit; Paypal; Wetern Union.

4: What is the delivery time?

Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us.

5: About the warranty

Answer: 1-year warranty. Lifelong technical support via email or video.

6: About the guarantee

Answer: MIC will protect the order. We have trade assurance.

7: Mode of transportation

Answer: You can choose sea, air, rail transportation.
