Metal Cutting Flat Bed Horizontal Drilling CNC Turning Lathe Machine

Product Description

Reliable and cost-effective three-speed CNC lathe Horizontal CNC machine tool
Product Description
Suitable for: general machining manufacturing industry, parts batch, small partsproduction.
Feature

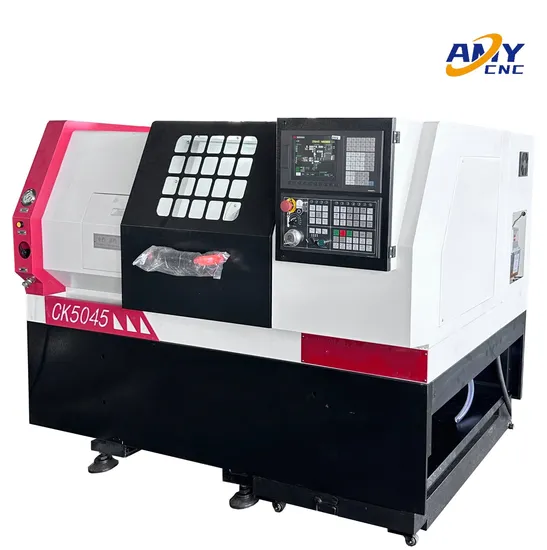

CK5045 three-speed CNc lathe is one ofthe series products ofCNc of ordinary lathe ofour factory, which has reliable performance andhigh cost performance.lt is a two-coordinate lloneitudinal2,transverse X continuously controlled horizontal CNc machine tool, whichcan automatically complete the turming machining of internal and external round suraces, conical surfaces, circular-arc surfaces, endsurfaces, many kinds of threads (metric and imperial threads, taper threads, end threads), driling, reaming, boring and other turningmachining. The machine is equipped with automatic lubrication system, which can efectively reduce the influence of thermal deformation and ensure the machining accuracy. This machine tool has a wide range of versatility, ordinary use in general machining manufacturing industy, parts batch, small partsproduction.
Product Parameters

Machine Structure	Guideway structure	Rectangular
	Guideway width mm	380
	Headstock transmission structure	Gear
		Bare Shaft
Machining capacity	Max.rotary diameter of lathe body mm	500
	Maximum turning diameter of lathe body mm	400
	Maxtuming diameter on the lathe support board mm	330
	Max.workpiece length mm	450
	Max.bar through-hole diameter mm	60
Stroke	X-axis mm	230
	z-axis mm	470
Feed	X-axis fast v m/min	10
	z-axis fast v m/min	10
	x-axis sm torq N.m	6
	Z-axis sm torq N.m	7.5
Spindle	Spindle end form	A2-6
	Spindle through hole diameter /mm	62
	Spindle hole taper	Metric 70
	RPM r/min	100-1500
	Spindle shift method	Continuously Variable Speed Three-speed Manual
	Main motor power Kw/rpm	7.5/1450
	Chuck form (standard)	Manual Three-jaw Chucks
	chuck form (optional)	Hydraulic Chuck
	chuck size Inch	10"
Toolholders	Turret type	4-station Electric Tool Holder
	Tool size	25x25
Tailstock	Lathe rear seat form
	Lathe tailstock sleeve diameter mm
	Lathe tailstock sleeve stroke mm
	Lathe tailstock sleeve taper
POWER SUPPLY	Total volume Kw	13
	V V	380
	I A	31.5
Specification	WT kg	2200
	SIZE LxWxH(mm)	2400x1480x1550
Other	Optional Buy more
