Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
| US$2,000.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JTPB-1.2*1.0
Carrying Capacity
Middle-Level
Tonnage
2t to 10t
Reel Number
1
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jtpb-1.2*1.0
Drum Diameter
1200mm
Drum Width
1000mm
Max Wire Rope Tension
30kn
Wire Rope Max Length First Layer
170m
The Second Layer
344m
The Third Layer
516m
Wire Rope Max Dia.
20mm
Wire Rope Breaking Pull Sum
275
Average Lifting Speed
1.88-2.4m/S
Electric Motor Rotating Speed
967r/Min
Electric Motor Power
55-75kw
Transport Package
Wooden Case or Carton Case
Specification
4658*2680*1450mm
Trademark
China Coal
Origin
Shandong, China
Production Capacity
1000 Sets Per Month
Product Description
Introduction Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchJTP series mining lifting winches are mainly used for mine floor shafts and inclined shaft lifting materials, personnel and equipment, can also be used for underground transportation and sinking bucket lifting.It can be single drum winch and double drum winch.zmwm10 Parameters Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
| Model | Drum | Max. Wire rope tension KN | Wire Rope Max. Length m | Wire rope | Average lifting speed m/s | Electric motor | Dimension mm | Weight kg | |||||
| Diameter mm | Width mm | The first layer | The second layer | The third layer | Max Dia. mm | Breaking pull sum | Rotating speed r/min | Power KW | |||||
| JTPB-1.2*1.0 | 1200 | 1000 | 30 | 170 | 344 | 516 | 20 | 275 | 1.88-2.4 | 967 | 55-75 | 4658*2680*1450 | 10421 |
| JTPB-1.2*1.2 | 1200 | 1200 | 30 | 203 | 412 | 620 | 20 | 275 | 1.57-2.4 | 967 | 55-75 | 4458*2680*1450 | 9940 |
| JTPB-1.6*1.2 | 1600 | 1200 | 45 | 215 | 433 | 655 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5224*2800*1925 | 15195 |
| JTPB-1.6*1.5 | 1600 | 1500 | 45 | 269 | 542 | 819 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5524*2800*1925 | 15678 |
| JKB-2 X1.8P | 2000 | 1800 | 62 | 332 | 670 | 1013 | 32 | 558 | 2.5 | 735 | 200 | 6410*3234*2600 | 25560 |
| JKB-2 X1.5P | 2000 | 1500 | 62 | 277 | 557 | 842 | 32 | 558 | 2.5 | 735 | 200 | 6160*3234*2600 | 24780 |
| JKB-2.5X2P | 2500 | 2000 | 83 | 373 | 755 | 1143 | 40 | 747 | 3 | 740 | 315 | 6700*3610*2600 | 36998 |
| JKB-2.5X2.3P | 2500 | 2300 | 83 | 429 | 867 | 1312 | 40 | 747 | 3 | 740 | 320 | 7000*3610*2600 | 39620 |

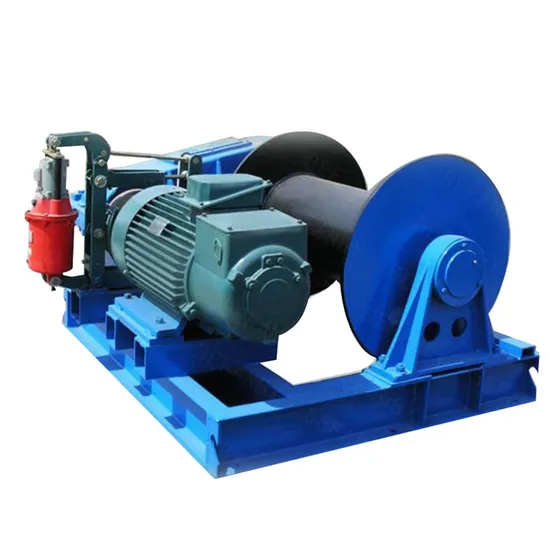

Photos Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
