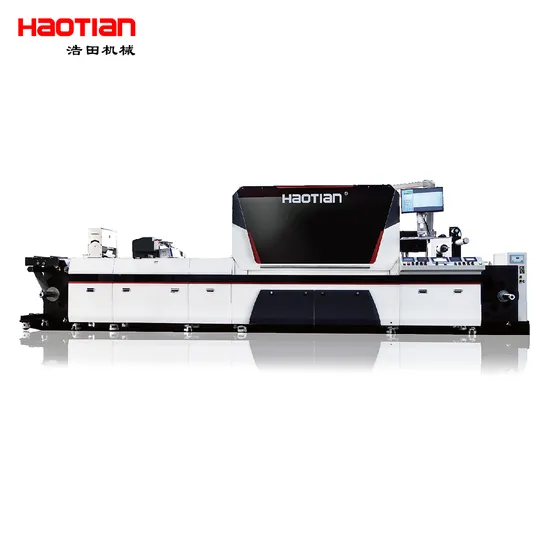

High Speed Full Color Single Pass Digital UV Inkjet Digital Printing Machine

Product Description

Machine parameters

Printing technology	Single pass UV inkjet technology, DOD industrial grade nozzle	Input air source	0.6~0.8mp
resolving power	DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi	Input power supply	Three phase 380VAC 20/60Hz 10kw
Printing speed/minute (maximum)	50m/min	Accept file format	Common formats for files such as PDF/JPEG/TIFF
Material type	Coated or uncoated paper, transparent or non transparent media, etc	Computer hardware	CPU HTS-PRIME Z370-A Graphics card HTS-GTX1070-O8G
Roll diameter for receiving and discharging materials	Maximum diameter 650mm	Thickness of substrate	0.01-0.8mm roll packaging material
Paper feed width	220mm/350mm (maximum)	image processor	RIP bundling allows for synchronized printing and RIP of big data archives, saving RIP time
Actual printing width	216mm/324mm (maximum)	Drying method	Composed of nine sets of LEDs and one set of UV lamps with total curing, combined with water-cooled rollers, to ensure that the material does not deform during final curing, and can dry easily deformed materials such as PVC, PET aluminum foil, etc
Ink	LED cured UV ink
Printing color group	Nine colors	temperature range	26~28°C
Mechanical dimensions (length x width x height)	Approximately 6850mm x 1850mm x 2000mm	Ink storage temperature	16~32°C
Mechanical weight	Approximately 4.2 tons	Humidity range	40-65%

Functional advantages
1. Adopting the world's top high-speed and high-precision industrial on-demand piezoelectric nozzle, with an accuracy of 600x600dpi, achieving high-quality portraits. The printing speed can reach up to 50m/min, and the nozzle has a long service life.
2. Inkjet printing is a non-contact printing method, which is the mainstream development direction of digital printing. It has strong material adaptability, and paper PVC,PET,PE,BOPP, Materials such as gold and silver foil do not require pre coating on the surface, reducing process costs.
3. Easily achieve full-color printing of transparent and non transparent materials, without the need for plate making, printing from one sheet.
4. The Variable Data print system easily realizes the printing of variable data such as one-dimensional codes, two-dimensional codes, serial numbers, and dot matrix codes, achieving one standard and one code, meeting the requirements of anti-counterfeiting and traceability orders.
5. A user-friendly and concise typesetting output software that allows for quick changes to order tasks without the need for job waiting, improving work efficiency
6. Ultra low production costs and low-priced supply of ink, nozzles, and other accessories, which are basically close to the cost of traditional printing.
7. The patented technology of the fully automatic nozzle cleaning and maintenance system (e-clean) effectively cleans and maintains the nozzle module, reducing ink waste and human damage to the nozzle during maintenance, and extending its service life
8. Imported environmentally friendly UV ink, non-toxic and VOC free, certified by the head manufacturer, does not block the nozzle, and has good color reproduction.
9. A mature and stable circulating ink supply system, modular independent positive and negative pressure control, segmented filtration technology, and world-class water degassing technology ensure ink supply stability and reliability.
10. The printing section adopts dual servo tension control, front and rear material tension control, and a stable and reliable tension control system to ensure smooth paper feeding and accurate registration.
11. Equipped with built-in corona, dust and electrostatic removal devices, effectively improving the affinity and adhesion between materials and ink; Reduce the impact of materials and external factors on inkjet imaging, and improve printing quality.
Feature
1. Targeting diversified, large and small batch products with short turnover time.
2. Compared with traditional equipment, it does not require adjustment time, has a fast order replacement speed, and has a production capacity more than twice.
3. Exclusive RIP color separation software, original ink factory waveform, user-defined ICC creation, combined with the unique texture of UV ink, presenting exquisite printing quality, fully expanding the imagination of brand merchants. The automatic fill in function has pre stored the ICC curves of common materials in the market, making it convenient to select the best characteristic files of printing machines and paper, achieving the best color reproduction.
4. Suitable for various media materials. Fully automated cleaning of the nozzle to prevent blockage. Test document integration, one click test of nozzle printing effect. Print samples
Machine details
Enterprise certificate
Our company
Our workshop
Packaging and Shipping
Our exhibition
FAQ

1.Are you a manufacturer?
Yes, we have been in making printing machine over 20 years.
2.machine adjustment and installation
We can send technicians go to customers' country for machine installation and adjustment.
4. Quantity and quality guarantee
Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.
Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
5. Validity: 60 days since the quote date
Thanks for your attention! Sincerely hope to work with you in near future!
