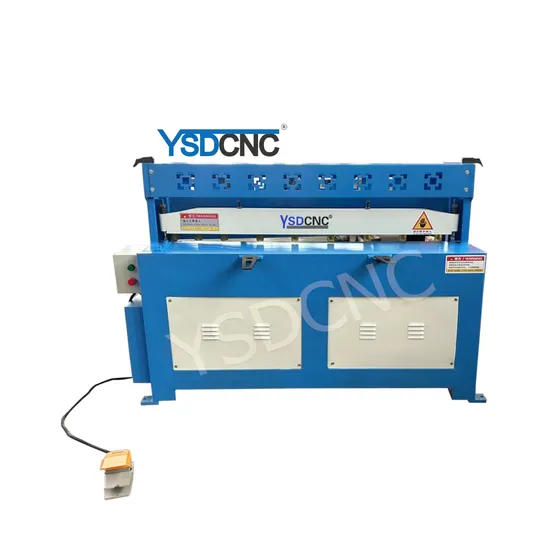

Q11-2*1300 Plate Metal Sheet Electric Shearing and Cutting Machine Q11 Shearing Machine

Product Description

Features
1.It runs when shearing, and the whole machine is in a static state when not shearing, saving energy and electricity.
2.The handle quickly adjusts the knife edge gap. 3.Curved and arc-shaped pendulum shearing, the knife edge maintains a minimum gap, and the blade is not easily damaged. 4.Transmission mode: After the reducer is driven by the inner cone self-locking motor, the eccentricity on the main shaft is driven through the sprocket, and the up and down movement is performed, thus changing into various shearing actions. This machine adopts all-steel welded structure, gate-type lower transmission shearing principle, chain drive, motor with built-in brake, no shearing and no power consumption. It is suitable for shearing and processing of ordinary steel plates below 3 mm. Details Products Foot switch Simple opreation High quality Electric control Box MD11 Operation system+backgauge E21 Operation system+backgauge Different styles can be designed according to customer requirements Specification

Tpye		Unit	Q11-2*1000	Q11-2*1300	Q11-3*1000	Q11-3*1300	Q11-3*1600	Q11-3*2000	Q11-3*2500
Shear plate thickness		mm	2	2	2	3	3	3	3
Shear plate width		mm	1000	1300	1000	1300	1600	2000	2500
Shear plane angle		°	2°14′	2°14′	2°14′	2°14′	2°14′	2°14′	2°14′
Upper toolpost stroke number		times/min	33	33	33	33	33	33	33
After the expected range		mm	400	400	400	500	500	500	500
Motor power		KW	3	3	4.5	4.5	4.5	5.5	5.5
Dimension	L	mm	1600	1900	1600	1900	2200	2800	3300
	W	mm	1000	1000	1100	1100	1100	1100	1100
	H	mm	1100	1100	1200	1200	1200	1200	1200
Weight		KG	650	700	900	1000	1200	1300	1800

Our Service 1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support and service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the
machine itself-basic manual for the machine in English. We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security. The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services. You can trade through TT, wire transfer, transfer, paypel, letter of credit, ****** credit order and other transaction methods. We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.) Our Company Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines:
air duct production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy
recovery. With over 300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres
and is equipped with 3 floor-type boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC
machining centers. In total, we have over 200 large and small-scale equipment. With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to become our agents. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit in
advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
