Portable Digital NDT Ultrasonic Flaw Detector Concrete Flaw Detector

Product Description

Product Description

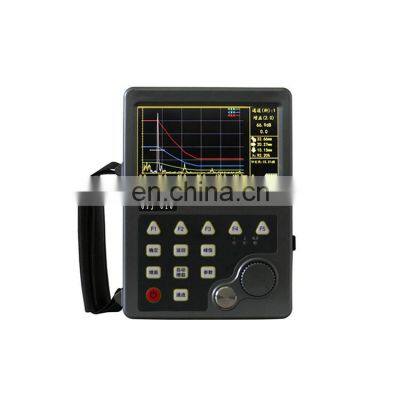

Portable Digital NDT Ultrasonic Flaw Detector Concrete Flaw Detector Usage OverviewLovely-U600 Ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions,blowhole etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all- Chinese truecolor liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquidcrystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leadingtechnology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and otherfields. It is a necessary professional precision instrument for detect detection, quality, control, in-service safety monitoringand life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.Product Description · Integral design, compact size · Easy to carry and make work efficient · Measurement data can be calibrated manuallySpecificationProductU610U620U630Working principleUltrasound(pulse~echo/echo-echo)Working frequency range0.5~20MHzPulse WidthSquare wave width 30~1000ns adjustable,step0.1nsDetection range0 to 14000(steel longitudinal wave)mmPules displacement-45 to 1000(steel longitudinal wave)mmMaterial sound velocity300~15000m/sDetection methodNegative wave,forward wave,two-way wave,filtering,RFwaveGain adjustment0 to 110dB: 0.1/1/2/6 step adiustmentThickness measurement functionNoNormal mode 0.75-300mm penetrating coating 2-150mmNormal mode 0.75-300mm penetrating coating 2-150mmWIFI/HDMI/Digital FilterNoNoPhone connection/HD pojection/digital filteringValveoff/incoming wave/lost waveDAC, AVG functionDAC curve, AVG curveAttenuator errorEvery 12dB±1dBVertical linear error≤3%Horizontal linear error≤0.5%Dynamic Range≥30dBFlaw deterction margin≥65(2.5Z20N probe)dBFar-field resolution≥26dBElectrical noise level≤10(1~4MHz)%Equivalent input noise＜80*10-9V/√HzPules repetition frequency20~1000Hz, step 1HzPulse volage25~400V adjustable, step 25VThin plate resolution≤3(5C10N prode)mmAWS D1.1/D1.5American Welding Association AWS D1.1/1.5 calculates steel structure and bridge weld gradesOperating Voltage12V(battery, DC)Physical dimension180*130*40mm(height*width*depth)StorageExpansion TF card, mass storageUnpacking displayOur Advantages1.inspection standard: built-in common inspection standard of various industries, direct call, convenient and fast;2.Weld joint diagram: weld shape parameters can be set, and the weld map and the position of the defect in the weld are visuallydisplayed during flaw detection;3.Automatic calibration: automatic calibration function of probe zero and probe angle (K value); automatic measurement function ofsound velocity;4.Crest memory: the highest wave of defects is retrieved in real time, and the maximum value of defects is recorded;5.Ф Value calculation: automatic calculation and display of defect equivalent size after the highest wave of defect is detectedand located by straight probe forging;6.Defect positioning: real-time display of defect horizontal, depth (vertical) and sound path position; Defect quantification:defect equivalent dB value is displayed in real time;7.Defect Qualitative: Through echo envelope waveform, it is easy to judge by manual experience.8.DAC/AVG: curves are generated automatically, sampling points are not limited, and can be compensated and modified. The curvefloats automatically with gain, expands automatically with sound path, and moves automatically with delay. Can display AVG curveof arbitrary aperture;9.AWS D1.1: American Welding Society Standard, which provides a dynamic reflector "defect rating" for all types of AWS weldinspection applications. Manual calculation can be avoided to improve detection efficiency; (optional)10.Crack height measurement: automatically measure and calculate the crack height by using the endpoint diffraction wave;11.Widening inside the door: Enlarging the echo details to facilitate echo analysis; 12.Continuous recording: record waveforms inreal time, store and play back;13.Waveform freeze: Freeze the waveform displayed on the screen to facilitate defect analysis;14.Echo coding: display 1~6 echo display areas in different colors, which is convenient for judging the defect position;15.Gain: total gain of 110dB, set 0, 0.1dB, 2dB, 6dB step value, unique automatic gain adjustment and sweep gain function, makingflaw detection fast and accurate;16.Gate alarm: door position, door width, door height can be adjusted arbitrarily; B. The gate can choose to set the incoming wavealarm or the lost wave alarm; Beeping sound inside the gate and LED light (LED light alarm is very effective in noisy environment)alarm and close;17.Real-time clock: real-time flaw detection date, time tracking record, and record storage;18.Battery module: high capacity lithium battery module, online and offline charging, convenient for flaw detection personnel.Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
