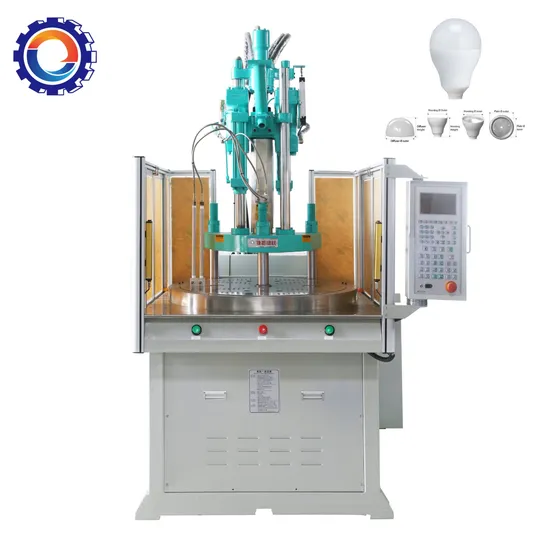

New Design Hot Sale LED Housing Plastic Injection Making Machine Factory Price

Product Description

Specification

Model	Unit	JY-550ST-R
Screw Barrel Diameter	mm	32	34	42
Injection Pressure	kg/cm2	1870	1418	960
Max. Shot Weight	gram	102	123	176
Max. Shot Weight	cm3/sec	42	51	84
Screw Barrel Route	mm	140
Screw Barrel Rotary Speed	rpm	0-175
Nozzle Contact Force	tons	5.5
Nozzle Retraction Nozzle	mm	210
Number of Temperature Control	pcs	3
Clamping Force	tons	55
Disk Staion	pcs	2/3
Disk Diameter	mm	980
Min. Mold Height	mm	250/200
Opening Stroke	mm	200
Max. Opening Mold Distance	mm	450/200
Ejetor Force	tons	1.76
Ejetor Stoke	mm	135
Max. Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	40
Oil Resservoir Capacity	Liter	150
Cooling Water Consumption	L/hr	800-1000
Pump Motor Power	kw/hp	7.5/10HP
Barrel Heating Power	kw	4.5
Total Power	kw	12
Machine Weight	tons	3.3
Machine Dimension(LxWxH)	meter	1.65*1.9*2.7
Shipping Weight	tons	3.4
Shipping Measurements(LxWxH)	meter	1.8*2.05*2.8

Product Drawing
Product Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
