Anti-Magnetic Field 12VDC 100A Motor Latching Relay for Energy Meter

Product Description

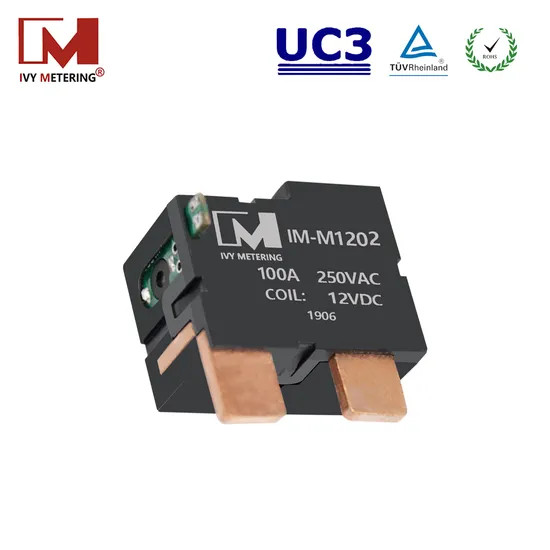

12VDC Latching Relay 100A for Single Phase Energy Meter
Product Description
1, Latching Relay
1) 100A switching capability.
2) Low coil consumption and ultra-low temperature rise.
3) Low contact resistance.
4) High resistance to shocks and vibrations.
5) Outline dimensions: 29x23.5x16mm.
6) Custom-made busbar configuration.
7) UC3 certified (IEC62055-31).
2 Applications
1) Electrical meter
2) Automatic meter reading(AMR)
3) All kinds of household electric applications and automatic control devices etc.
3, Furniture.
1) Compact configuration
2) Small size
3) High switching capacity

Basic Data	Dimensions(mm)		29×23.5×16
	Weight ( g )		≈40g
	Contact Arrangement		1A/1B
	Contact Material		AgSnO2
	Ambient Temperature		-40~+75ºC
	Vibration		10~50Hz,1.5mm
	Shock		1000m/s²,(100g)
Specifications Data	Power Consumption		<3W
	Operating Voltage		10.5-16V
	Max. Switching Current		100A
	Surge Current		6000A/10ms
	Motor Resistance		32(1±15%)Ω
	Contact Voltage		<60mV
	Contact Resistance		≤1.0mΩ
	Dielectric Strength	Motor to Contact	>4000VAC,50/60Hz 1min
		Across Open Contact	>2000VAC,50/60Hz 1min
	Electrical Life(120 cycles/H)		10,000 (resistance 5 k + perceptual 5 k, co ϕ = 0.5)
	Mechanical Life(3600 cycles/H)		100,000
	Pulse Time		≥60ms(Advise 60ms~100ms)
	Picking-up Time		≤60ms
	Release Time		≤60ms
	Insulation Resistance		>1000MΩ(500VDC)

Cautions of Latching Relay:
1. Suggestions of relay's input
(1) Polarity- Please check the polarity inside of our technical specification, if a single coil then"+ -" or "- +"is fine, you can change it with one pulse. If double coil then it's necessary to confirm "-+-" or "+-+" before leaving our factory. (2)Driving-Please energize the relay at our recommended pulse width, and rated voltage for reliable performance of 1.5 times or 2 times of value or lower driving condition plz confirm with our engineer.
(3) Contact status may be changed during transportation or installation due to the impact of external force,
therefore please reset to the required status. 2. Suggestions for the relay's output
(1)When choosing the relay with a hard connection, please avoid the external force on load terminals during or after the installation. (2)When the relay will be connected with screws or bolts to the relays' terminals, plz make sure your connection is fastened and prevent the relay from damage or other safety problems due to temp. Rise.. (3)The sampling signal wires of products are limited, please do not pull or torque during installation.
