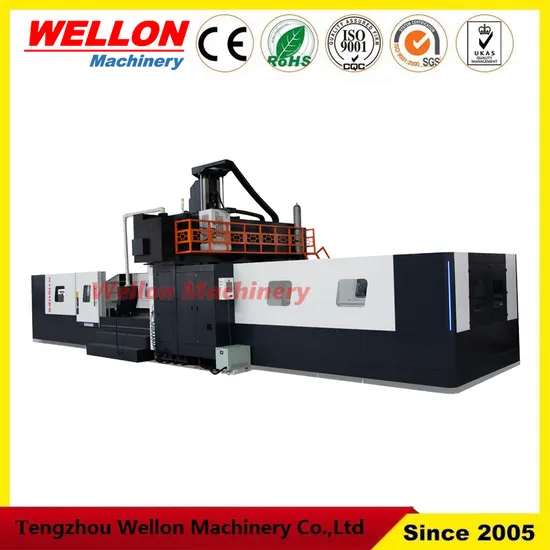

Xh2016 Factory Sale Gantry Type Machining Center/ Gantry Type CNC Machining Center
Basic Info.
Model NO.
XH2016
Type
Gantry Milling
Structure
Gantry
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
2000X1300
Max Table Load
18t
Table Travel X
2000
Table Travel Y
1650
Table Travel Z
800
Spindle Speed
10000
Distance Between Two Column
1660
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
100 PC/Month
Product Description
Detailed PhotosProduct Parameters
| Item | Unit | XH2016 |
| X axis travel | mm | 2000 |
| Y axis travel | mm | 1650 |
| Z axis travel | mm | 800 |
| Spindle nose to worktable | mm | 250-1050 |
| Distance between two column | mm | 1660 |
| Leadscrew diameter | mm | 63/50/50 |
| Linear guideway width | mm | 55/55/Rectangle |
| Worktable Length | mm | 2000 |
| Worktable width | mm | 1300 |
| T slot qty-width*distance | mm | 7-22*170 |
| Max loading capacity | Ton | 4 |
| Spindle speed | rpm | 10000/belt |
| Spindle motor power | kw | 15 |
| Fast moving speed | m/min | 20/20/10 |
| Cutting speed | mm/min | 1-8000 |
| Spindle taper | BT50 | |
| Feed motor power | kw | 6/5/5 |
| X/Y/Z axsis motor torque | Nm | 38/30/30 |
| Tool Magazine Capacity | pcs | Disc/24 |
| Positioning accuracy | mm | 0.016/0.015/0.015 |
| Repeat accuracy | mm | 0.012/0.010/0.010 |
| Length | mm | 4000 |
| Width | mm | 2950 |
| Height | mm | 3200 |
| Weight | kg | 16800 |
Standard accessories:
Mitsubishi M80B controller
Spindle speed 6000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
