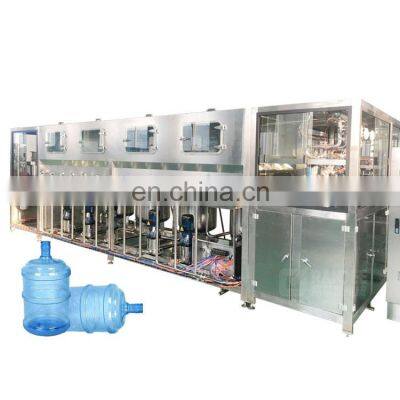

Factory Price 19L 20L 5 Gallon Disposable Bottle Bottling Plant Water Filling Machine

Product Description

Product Description
Factory Price 19L 20L 5 Gallon Disposable Bottle Bottling Plant Water Filling MachineProduct DescriptionFunctions and features:This filling line specially for 3-5gallons barreled drink water,with type QGF-100,QGF-200,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together . 1.Automatic break protection for power leakage and short circuit;2.Under-pressure protection: when incoming air's pressure is Less than or equal 0.5MPa, the equipment will be automatically stopped.3.Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.4.Remarks:We can add other functions as customer's requirements like:hot tank heating washing,bottle external washing,cap washing ,capacity note and man-machine control. Whole 5 gallon water filling line:DetailsDe-capping machine:This decapping machine is designed for 3 & 5 gallon bottle in water production line. It's used to pull out the cap of recycling bottle before rinsing.Automatic outside brushing machine:The machine is used for cleaning barrel outside before filling process.It's used for allround cleaning the bottle, significantly improves cleaning efficiency.Automatic up-loader:Automatically push the prepared empty bottle into the filling machine, put the bottle into the holder inside the washer station.5 Gallon Water Bottle Filling Machine:This filling machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.Light CheckerWith two light pipes, inspect bottle water after filling function. Cap Heat Shrink MachineThis cap heat shrink machine is used to shrink the plastic label on the 3& 5 gallon caps. It adopted good quality imported stainless steel, simply operation and working smoothly. Automatic barrel bagging machine:Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.Bottle conveyor system:Including empty feeding system, plastic chainfull barrel conveyor system, SUS34 material Main technical parameterModelQGF-100QGF-200QGF-300QGF-450QGF-600QGF-900QGF-1200Filling heads12234612Volume3&5 GallonBarrel size Φ270*490mmCapacity(b/h)60-100100-240250-300400-450600-800800-9001000-1200Air pressure(MPa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.60.6Air consumption(m³/min)0.370.370.60.811.51.8Motor power(kw)1.381.753.83.87.59.7513.5Rated power(kw)1.381.753.83.87.59.7513.5Rated voltage380V/ 50HZWeight(KG)68080015002100300035004500Related productSemi automatic 5 gallon / 20L PET bottle blow molding machine: Semi automatic Blowing Machine for 90BPH-180BPH from 5 gallon bottle with one cavity, 5L bottle with 2 cavity can be also used in this blowing machine RO System:Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your waterfilling machine from capacity from 500L/Hr to 50000L/hr.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etcAutomatic shrink labeling machine for 5 gallon neck label: Capacity: 50-100bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Company information Our team Our exhibition Project cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. If you are interested in our products, please send me an inquiry.
