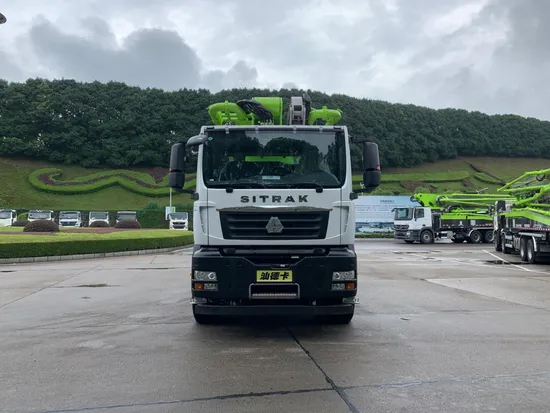

Zoomlion Concrete Pump Truck Zlj5350thbkf with CE ISO for Good Price

Product Description

Zoomlion Concrete Pump Truck ZLJ5350THBKF with CE ISO for Good Price
Product Description
Chassis Performance Power System1: It can be equipped with a variety of engines, such as MC11.40-60, MC11.44-60, MC13.48-60 and so on. The power of these engines ranges from 297kW to 444kW, which provides strong power support for the pump truck and ensures its stable operation under various working conditions. Axle and Wheelbase1: It has 3 axles with wheelbases like 4325+1350mm, 4300+1400mm and so on. The front wheel track is 2110mm and the rear wheel track is 1850/1850mm. This structure design endows the vehicle with good stability and passing ability. Overall Dimensions1: The length of the vehicle is 9112mm, 9692mm, 9792mm and other different specifications, the width is 2496mm, and the height is 2980mm, 3190mm or 3360mm. The overall size is designed reasonably to adapt to different construction site environments and transportation requirements. Load Capacity: With a total mass of 35,000 kg, it can carry a large amount of concrete and related equipment, meeting the needs of different construction projects1.
Pumping System Pumping Capacity: It is equipped with a high-performance pumping system that can achieve high-pressure and large-flow concrete pumping. The specific pumping capacity is designed according to different working conditions and requirements, which can effectively improve the construction efficiency. Pumping Height and Range: The pump truck has an excellent pumping height and range. It can pump concrete to a relatively high building or a long distance, which is of great significance for the construction of high-rise buildings and large-scale projects.
Operational Performance Control System: It adopts an advanced control system, which can realize precise control of the pumping process, boom operation and other functions. The operator can easily operate the pump truck through the control panel in the cab to complete various construction tasks. Boom Structure: The boom of the pump truck is made of high-strength materials, with reasonable structure and good flexibility. It can be flexibly rotated and extended to meet the concrete pouring needs at different positions and angles. Other Features Safety Performance: It is equipped with a series of safety devices, such as overload protection, anti-tipping device, etc., to ensure the safety of the pump truck during operation and protect the safety of operators and construction personnel. Comfort: The cab is designed with ergonomics in mind, providing a comfortable working environment for the operator. It is equipped with a shock-absorbing seat, air conditioning system and other facilities to reduce the operator's fatigue.
Product Parameters
Main Performance Parameters Unit Value

Maximum Theoretical Delivery Volume	m³/h	180/120
Maximum Concrete Outlet Pressure	MPa	8.3/12
Rated Working Pressure	MPa	35
Pumping Frequency	min	26/18
Concrete Cylinder Diameter×Stroke	mm	Φ260×2100
Structure Form	/	49X - 6RZ
Maximum Distribution (Height/Radius/Depth)	m	48.6/43.6/34.6
Rotation Angle	°	+270°
Outrigger Span (Front×Rear)	mm	9310×10500
