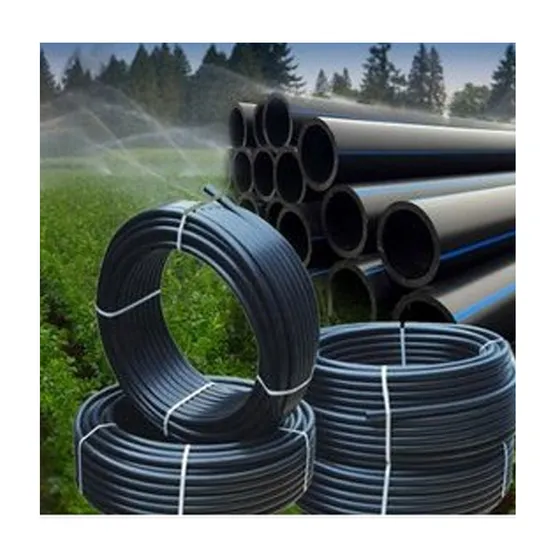

HDPE Pipe PE100 1 Inch Black Plastic Tube Roll Garden Irrigation Hose for Water Supply

Product Description

Product Description
Poly Ethylene PE Plastic Pipe Roll for Farm Sprinkler Irrigation Pipe System
HDPE pipe introduce
PE pipe inner wall is smooth, and does not change with the use of time, small friction resistance, energy saving, pressure loss is about 30% smaller than steel pipe, can choose a smaller diameter than steel pipe. Good hygienic performance, no additives, no possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.
Features.
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Application of PE Pipe
PE water supply pipe can be used for general purpose pressure water transmission and drinking water transmission. His surface
color indicates that his use is mainly for water-related pipes (water supply pipes), gas pipes in yellow, fire-fighting pipes in
red and mining pipes.
There are mainly municipal buried water supply, building water supply (drainage), farmland irrigation, waterscape engineering and
so on. In water supply pipeline engineering, PE water supply pipe will eventually replace UPVC pipe. Product Parameters

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3.0	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49.0	61.2	76.2	94.1	117.6	-	-	-

Product Name	HDPE PIPE
Standard	GB/T13663-2000,ISO 4427-1:2007
Specification	16-2000mm
Pressure	0.4MPa SDR41-2.5MPa SDR7.4
Main application	Water Supply, irrigation, and dredge system
Guarantee	More than 50 years
