RAM-Type Universal Milling Machine and Horizontal Miller

Product Description

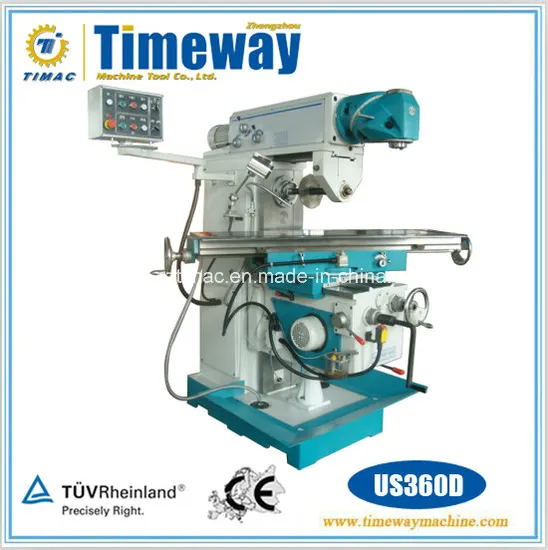

Ram-type Universal Milling Machine and Horizontal Miller
US360D
Features:
Sturdy, zero-backlash box guideways.
Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
Large workarea of 1500*360mm and table load capacity up to 450kgs.
Quiet, preicison-made headstock gears with hardened and ground gears.
Universal cutter head swivels on 2 levels quick change over from horizontal to vertical machining.
By combining both swivel levelsm almost any abgle can be set.
Automatic table feed on X and Y and Z axes, including rapid feed.
Control panel swings out to either side and DRO is optional.
Coolant system and chip tray are included.
Technical Parameter

Specification	Unit	US360D
Spindle taper	-	ISO50
Distance from horizontal spindle center to table surface	mm	30-510
Spindle speed	rpm	12steps 60-1800(V) 60-1750(H)
Table size	mm	1500*360
Max. rotation angle of table	deg	±45°
Table manual feeding travel(X/Y/Z)	mm	900*390*500
Table power feeding travel(X/Y/Z)	mm	860*350*450
Longitudinal feeding speed of table(X)	mm/min	30-600(8steps)
Cross feeding speed of table(Y)	mm/min	22-410(8steps)
Vertical feeding speed of table(Z)	mm/min	15-220(8steps)
X-axis rapid feed speed	mm/min	1300
Y-axis rapid feed speed	mm/min	1200
Z-axis rapid feed speed	mm/min	600
Feed motor power	kw	1.1
Max. weight of workpiece	kgs	450
T-slot(Number/width/distance)	mm	3/18/70
Vertical guideway type	-	Rectangular guideway
Cross guideway type	-	Rectangular guideway
Longitudinal guideway type	-	Dovetails guideway
Main motor power	kw	4
Coolant pump power	w	90
N.W/G.W	kgs	2350/2600

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
