China Pege Cryogenic Machine for Deburring Rubber and Plastic Flashes

Product Description

Premier Manufacturer of Automatic Rubber and Plastic Burr Cleaning Machines in China
Product Description As temperatures drop, rubber and plastic components undergo a transformation, becoming hardened, brittle, and crystalline, gradually losing their flexibility. When exposed to brittle temperatures, they are prone to breaking under external forces. The flash of molded products is typically much thinner than the product itself, becoming brittle faster at low temperatures. Our state-of-the-art cryogenic deflashing machine leverages this principle, operating in the critical window when the flash is brittle, while the main product retains its flexibility. It utilizes high-speed projection of special plastic media to target and eliminate brittle burrs effectively. This process ensures easy removal of flashes without compromising the integrity of the product.
Functions
This machine is expertly designed for the efficient removal of flashes from small rubber and plastic components, such as O-rings, gaskets, and various molded parts, ensuring pristine quality.
Utilizing advanced cryogenic processing technology, flashes are initially frozen before being eliminated by high-speed projection media (Polycarbonate blast). This method significantly enhances the surface quality of molded rubber and plastic parts.
Specifications

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T

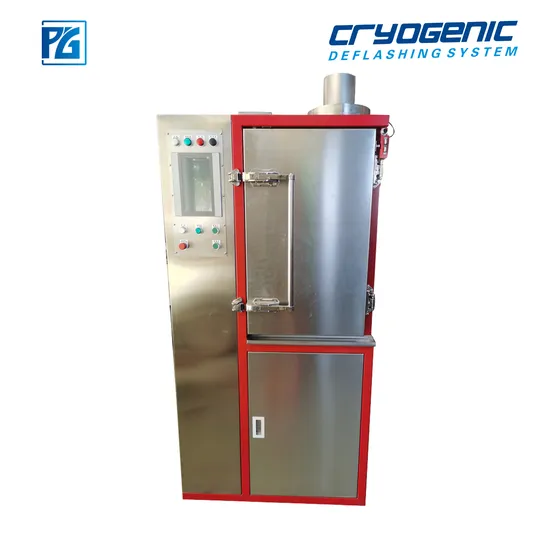

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

Machine Inner Component Pictures
Applications
A. Ideal for O-rings and irregular rubber parts of varying materials and sizes.
B. Suitable for micro electronic product components, ensuring precision and quality.
C. Tailored for precision elastomeric parts, delivering exceptional results.
D. Perfect for precision injection molding plastic parts, enhancing product accuracy.
E. Essential for R & D part runs, providing reliable and efficient solutions.
F. Effective on die-casting products such as zinc, aluminum, and magnesium alloy.
Features
High Efficiency: This cutting-edge machine is capable of replacing the workload of 60-80 workers, streamlining the flash removal process.
High Precision: Expertly removes small and hardened flashes that are beyond the capability of manual workers, significantly enhancing product precision.
Cost-Effective: Offers a cost-effective alternative to manual processing, ensuring high-quality results at a lower expense.
