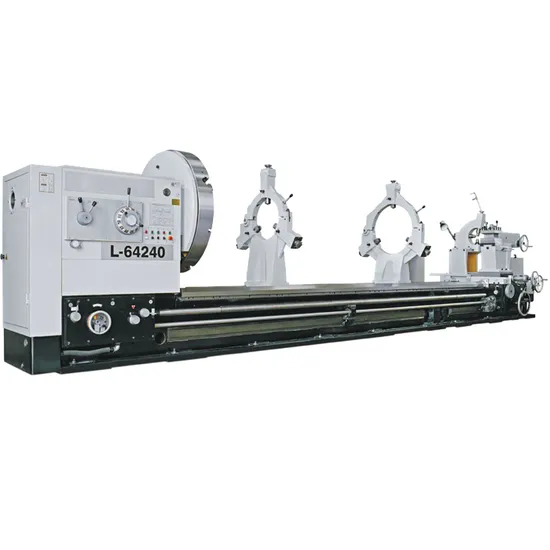

China Heavy Duty Horizontal Metal Big Spindle Bore Lathe Machine
| US$35,788.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CW62103
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
4-Positioin Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Heavy Duty Lathe Machine
Swing Over Bed
1000mm
Bed Width
755mm
Spinle Bore
130mm
Main Motor
22kw
Spindle Speed
3.15-315rpm
Max Length
1.5m to 12m
Max.Travel of Cross Slide
520-630mm
Max.Travel of Top Slide
300mm
Tool Shank Size
45mm
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
China Heavy Duty Horizontal Metal Big Spindle Bore Lathe MachineApplications of Universal 2tons Manual Turning Lathe
The Universal 2tons Manual Turning Lathe is ideal for machining internal, external and cylindrical surfaces as well as other rotary surfaces. It is suitable for cutting various metric, whitworth, module, and D. P. Threads, as well as big discs; And conventional turning, facing, drilling, reaming and broaching are also available.
Features of Universal 2tons Manual Turning Lathe
1. This manual lathe can machine big disc & special workpieces in Gap Bridge of bed.
2. The roughness of the parts which are finished by the lathe are up to 3.2μ M.
3. The turning lathe accuracy of the dimension can reach IT7".
4. Two shaft sliding-gear transmission mechanism in the feed box has better rigidity.
5. The apron has rapid traverse mechanism and controlled by single handle.
| ITEM | UNIT | CW61100B | CW61125B | CW61140B | CW61160B |
| CAPACITIES | |||||
| Swing over bed | mm | 1000 | 1250 | 1400 | 1640 |
| Swing over carriage | mm | 615 | 865 | 1015 | 1250 |
| Max.length of workpiece | mm | 1500 2000 3000 4000 5000 6000 8000 10000 12000 | |||
| Max.turning length | mm | 1300 1800 2800 3800 4800 5800 7800 9800 11800 | |||
| Pan of guideway | mm | 755 | |||
| SPINDLE | |||||
| Spindle nose | mm | A2-15(8×M22) | |||
| Spindle bore | mm | 130 | |||
| Taper hole of spindle | 1:20/140 | ||||
| Range of spindle speeds | r/min | forward:3.15~315 ; reverse:3.5~291 | |||
| No.of spindle speeds | forward:21; reverse:12 | ||||
| FEED | |||||
| No.of Longitudinal and cross | 56/56 | ||||
| Feed per revolution | mm | Longitudinal:0.1~12;cross:0.05~6;top slide:0.025~3 | |||
| No. and range of metric thread | 44;1~120mm | ||||
| No. and range of inch thread | 31;28~1/4 | ||||
| No. and range of module thread | 45;0.5~60mm | ||||
| No. and range of dia. thread | 38;1/2~56DP | ||||
| turret | |||||
| Distance of centerline and tool resting plane | mm | 48 | |||
| Tool post swing range | ° | ±90° | |||
| max travel of cross slide | mm | 520(20″) | 580 | 580 | 630 |
| max travel of top slide | mm | 300 | |||
| Section of tool shank | mm | 45(260x260) | |||
| Rapid travel speeds | mm/min | Longitudinal:3740;cross:1870;Little slide:935 | |||
| TAILSTOCK | |||||
| Dia. of tailstock | mm | 160(6″) | |||
| Travel of tailstock quill | mm | 300(12″) | |||
| Taper hole of tailstock quill | morse 6 | ||||
| OTHERS | |||||
| Main motor power | kw | 22 | |||
| Length | mm | 4600 5100 6100 7100 8100 9100 11100 13100 15100 | |||
| Width | mm | 2150 | |||
| Height | mm | 1700 1825 2150 | |||
| Max.weight of workpiece | kg | 6000 | |||
