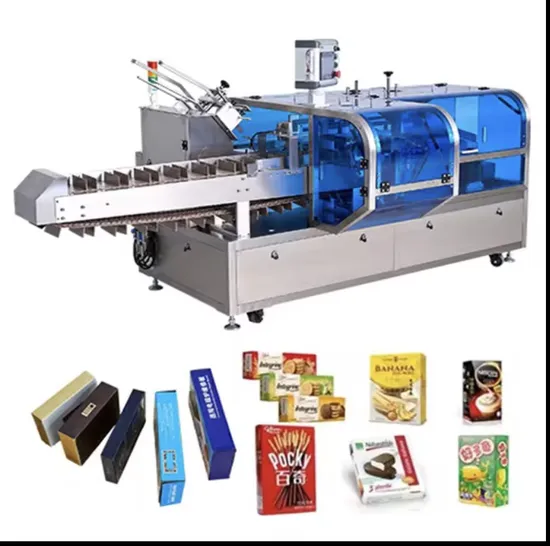

Automatic Horizontal Popsicle Box Packing Machine Ice Pops Blocks Cartoning Packaging Machine

Product Description

Product Description It is utomatic cartoning machine suitable for food, household chemicals, hardware and electrical industries for the packaging of sachets,pouch,blisters, bottles, vials, pillow packs, toothpaste, ect. It can open cartons, insert the products into cartons, tuck-in or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line. It is the best choice for mass production.
Applicaction:
It is suitable for ALU-PVC blister, ALU-ALU blister and similar product.
It is suitable for packing sachet, condom, adhesive bandage, soft alu strip, plaster, coffee bag and similar product.
It is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
It is suitable for soap, toothpaste, soft tube, pillow product, hardware and similar product.
Instruction and features: This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, and setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products.
6. Stable performance, operation is easy.
Size Information

Packing Speed		30-60boxes/min
Carton Specification	Quality	250-350g/min(according to its dimension)
	Size Range	(70-250)mm×(50-120)mm×(20-90)mm (Special size can be customized)
Compressed Air	Working Pressure	≥0.6mpa
	Air consumption	20m³/h
Power Supply		380V,50HZ(can do your request)
Motor Power		1.5kw
Machine Dimension		4200*1350*1900mm
Machine Weight		1500KGS

Encasing speed		30-120 boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range (L*W*H)	(70-180)mm*(35-85)mm*(14-50)mm
	Quality requirement	60-70g/m2
Leaflet	Unfolded leaflet specification (L*W)	(80-250)mm*(90-170)mm
	Fold range	(1-4) fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power		220V/380V
Motor power		0.75kw
Machine dimension(L*W*H)		3100mm*1100mm*1550mm
Machine weight		1400kg
