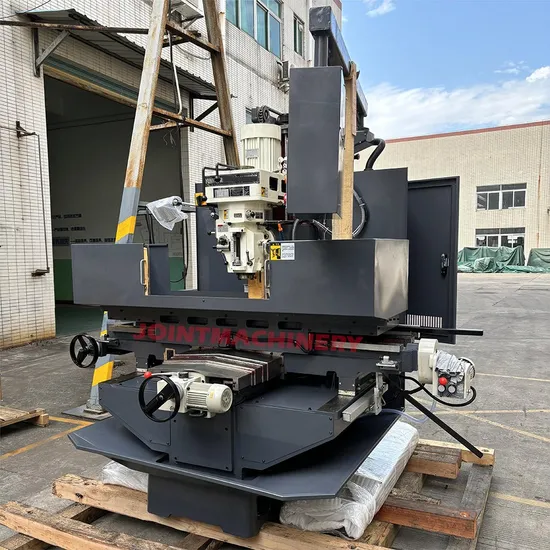

Precision Metal Fabrication Turret Milling and Boring Machine B600L

Product Description

Recombination Precision Vertical Horizontal Milling Machine
√ Experience exceptional stability and power with our Bed Milling Machine, boasting high rigidity and remarkable load-bearing capacity.
√ Featuring Taiwan's original precision milling head, complemented by a ball screw, and NSK P4 precision spindle bearing ensuring spindle tolerance of just 0.002mm for superior precision.
√ Our three-axis system employs precision ball screws that promise rapid movements and exceptional accuracy in positioning, enhancing operational efficiency.
√ Ideal for handling heavy and sizable workpieces weighing between 800-1000KG, ensuring reliable performance for demanding projects.
√ Constructed with a bed structure of Meehanite cast iron, our high-rigid structural design guarantees unwavering durability and performance.
1. WORKTABLE
Our worktable is the epitome of superior craftsmanship, featuring ultra-audio quenching, precision grinding, and meticulously scraped guides that ensure ultimate smoothness. Enhance its versatility by adding a rotary table for expanded multifunctionality.
2. TURRET MILLING HEAD
Our innovative turret milling head is engineered to swivel 45° forward-backward and rotate 90° left-right, enabling seamless milling of intricate angles with remarkable ease.
3. SPINDLE
Outfitted with a high-precision R8/NT30/NT40 spindle, our system guarantees an outstanding spindle runout precision of merely 0.003mm, providing unparalleled reliability and accuracy.
4. X/Y/Z AUTO FEED
Revolutionize your operations with our automatic X/Y axis feeding and electric Z-axis lift, significantly boosting productivity and simplifying your tasks.
5. DRO
Experience enhanced precision with our configurable 2-axis or 3-axis DRO, meticulously tailored to fulfill your specific needs and elevate overall performance.
Precision Metal Fabrication Turret Milling and Boring Machine B600L

Model				B600L
Table size			mm	1570*405
Travel		X axis	mm	1500
		Y axis	mm	350
		Z axis	mm	580
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	760
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	58-3000
		60HZ	rpm	70-3600
	Rotation speed (Variable speed milling head)	50HZ	rpm	58-3250
		60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt angle		Forward and Backward	°	0°
		Left and Right	°	±90°
Dimension			mm	2000*3050*2150
Weight			kg	2900
