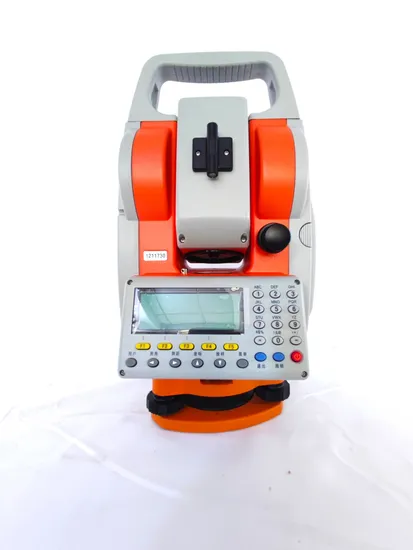

High Accuracy Land Measurement Device Mato Mts602r Total Station
Basic Info.
Model NO.
MTS602R
Range Finding
3-15km
Accuracy
2mm
Vertical Lines
2
Horizontal Line
2
After-Sales Service
Professional Guidance
Warranty
1 Year
Magnification
30X
Angle Measurement Accuracy
2"
Single Prism Range
5000m
Transport Package
Carton
Specification
45*28*35 cm
Trademark
MATO
Origin
Changzhou, China
HS Code
9015800090
Production Capacity
5000
Packaging & Delivery
Package Size
45.00cm * 28.00cm * 35.00cm
Package Gross Weight
10.000kg
Product Description
Product Description 1. The target customers are engineering companies that usually use total stations but lack of well-trained measuring technicians.2. The benefits of this instrument include its high-precision, easy-operation, and one key for angle measurement/ ranging/ lofting etc.
3. Other commonly used functions such as resection, one key measuring storage complicity etc. Can be set manually by the users onto the "User" key as one pleases.
4. The operation efficiency is 30% higher than other total stations.
Detailed Photos
Product Parameters
| MTS600 Series One Key Survey Engineering Type Total Station | |||||
| Main Technical Specifications | MTS602R | MTS602R+ | MTS602R8 | MTS605R | |
| Telescope | Magnification | 30X | |||
| Field angle | 1°30′ | ||||
| Image | Erect | ||||
| Angle measurement | Minimum reading | 1″ | 1″ | 1″ | 1″ |
| Accuracy | 2″ | 5″ | |||
| Distance measurement | Minimum reading | 1mm | 1mm | 1mm | 1mm |
| Prism accuracy | ±(2 mm+2 ppm*D) | ||||
| Reflector accuracy | ±(2 mm+2 ppm*D) | ||||
| Non-prism accuracy | ±(5 mm+3 ppm*D) | ||||
| Single prism range | 5000m | 7500m | 7500m | 5000m | |
| Reflector range | 800m | 1000m | 1000m | 800m | |
| Non-prism range | 400m | 600m | 800m | 400m | |
| Data management | Memory point | 50,000 points | |||
| SD card | Optional | ||||
| USB drive | Optional | ||||
| Bluetooth | Optional | ||||
| Display | Dual 192*64 pixel | ||||
| Working temperature | -20ºC~55ºC | ||||
