Glaucoma Surgery YAG Laser for Ophthalmology (MD-920)

Product Description

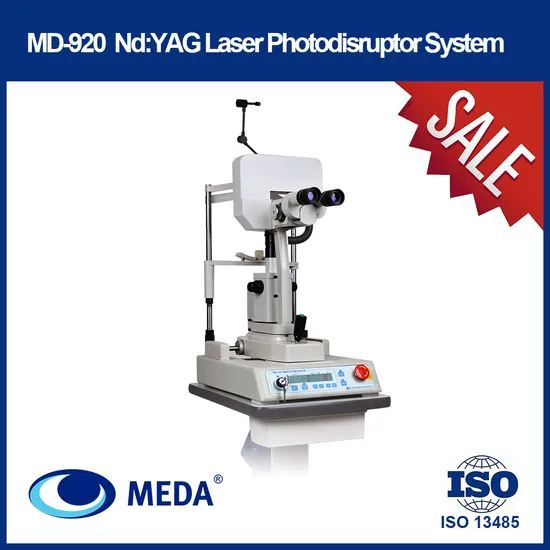

MD-920 Nd:YAG Laser
Clinical Application
Utilizing the light-induced explosion of 1064nm laser pulse to tissues, the Device is intended to be used for ophthalmologic lens capsulotomy, incision or excision of iris, vitreous surgery and other clinical surgeries for therapy of the non-pigmented tissue lesions of anterior segment for eyes.
General Description
MD-920 Nd: YAG Laser System for Ophthalmology produces 1064nm wavelength laser pulse. The laser pulse and dual-spot aiming beam can position precisely on the ocular tissue to be treated through slit-lamp microscope. The YAG laser energy is concentrated and focused on a spot of about 30μm, producing light-induced explosion effect in the action of such a high optical power density, to dissociate ocular tissue rapidly for a purpose of surgery.
Specifications

Laser Type:	Nd:YAG, Q-Switched
Wavelength:	1064 nm
Burst:	1, 2, 3 pulses per burst
Pulse Duration:	4.5 ns
Repetition Rate:	2.5 Hz
Output Energy:
A) 1 pulse maximum output:	11 mJ
B) 2 pulse maximum output:	19 mJ;
C) 3 pulse maximum output:	28 mJ;
D) Output Energy Regulation:	100%-6%, adjustable by 7 Steps
Cone Angle:	18º
Spot Size:	30 μm
Aiming Beam Wavelength:	633 nm
Cooling System:	Air Cooled
Dimension:	765mm x 610mm x 420mm
Weight:	19 Kg

Cerificate
ISO13485 and CFDA
