Used Chinese Factory Genie S85xc Equipment for Sale Lifter Telescopic Boom Lift for Construction Lifts
| US$3,998.00-9,998.00 | 1 piece (MOQ) |
Basic Info.
Model NO.
Genie S85-XC
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Model No.
Genie S65-Xc
Working Height
21.81m
Hoizontal Outreach
16.51m
Closed Length
9.76m
Closed Height
2.82m
Closed Width
2.49m
Platform Size
1.83m*0.76m
Rotation
Continuous
Max Swl
300/454kg
Weight
11412kg
Platform Height
25.91m
Transport Package
Nunude Packing, by Container or Roro Ship
Specification
11412kg
Trademark
Genie
Origin
China
HS Code
8704210000
Production Capacity
5000 Untis Per Year
Packaging & Delivery
Package Size
200.00cm * 130.00cm * 140.00cm
Package Gross Weight
100.000kg
Product Description

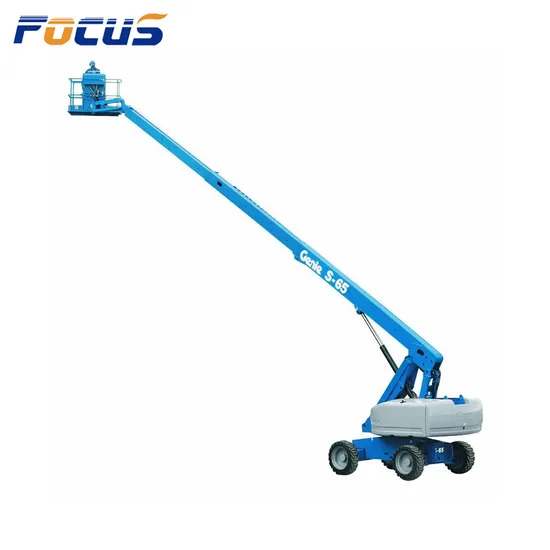

Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment Diesel-powered S boom lift for sell
Product Description
Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.
Maximum capacity with a robust jib design to handle increased loads
Load sense technology for accurate load weighing and zero-load field calibration
Chassis tilt sensor technology maximizes access to hard-to-reach work areas
Onboard diagnostics maximize serviceability
Option to add the new Genie Lift Power™ generator system
Detailed Photos
Product Parameters
| Genie S-65 XC Specifications | ||
| Measurements | Metric | US |
| Working height maximum | 21.81 m | 71ft |
| Platform height maximum | 19.81m | 65ft |
| Horizontal reach maximum | 16.51m | 54ft 2in |
| Below ground reach | 2.65m | 8ft 8in |
| Productivity | ||
| Maximum lift capacity - unrestricted | 300kg | 66lbs |
| Maximun lift capacity -restricted | 454kg | 1000lbs |
| Platform rotation | 160° | 160° |
| Vertical jib rotation | 133° (+ 79° /- 54°) | |
| Turntable rotation | 360° continuous | |
| Turntable tailswing | 1.41 m | 4 ft 7.5 in |
| Drive speed - stowed | 4.8 km/h | 3.0 mph |
| Drive speed - raised/extended | 0.3 m/s | 1 ft/s |
| Gradeability - stowed | 45% | 45% |
| Turning radius - inside | 2.40 m | 7 ft 9 in |
| Turing radius - outside | 5.50 m | 18 ft 2 in |
| Controls | 12V DC proportional | |
| Tyres | 355/55D 625 | |
| Power | ||
| Power source | Deutz D2011L03i, 48 hp (36 kW) | |
| Auxiliary power unit | 12V DC | 12V DC |
| Hydraulic tank capacity | 170 L | 45 gal |
| Fuel tank capacity - diesel | 132 L | 35 gal |
