Factory Price Paper Honeycomb Kraft Board Machine

Product Description

Product parameters

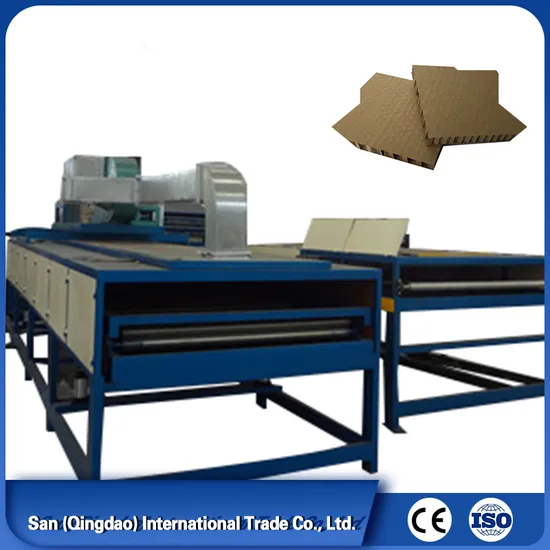

	Specifications For FXCD2000 Automatic Honeycomb Cardboard Production Line
1	main material	corrugated paper, kraft liner board, tea paperboard and so on.
2	adhesive	white latex, starch glue.
3	from paper goes in to cardboard goes out, it is all completed in a fully automated production line. Only 2 to 3 operators needed, high paper utilization, advanced technology.
4	this device is equipped with two sets of glue roller that can produce two different honeycomb pore size cardboard use two cladding.
5	use man-machine interface, PLC control, high degree of automation. Greatly improve production efficiency.
6	this device is exquisite, operation and maintenance simple.

Product details
Main technical parameters
Core paper(width*roll diameter)=(1600mm*Φ1200mm)
Core paper weight:110g/m2-140g/m2
Cover paper(width*roll diameter)=(1300mm*Φ1200mm)
Cover paper weight: 180g/m2-400g/m2
paper core thickness: 8-80mm
finished sheet thickness: 8-80mm
finished sheet length: 500-3000mm
production speed: 0-15m/min
heating: electric heating, hot air circulation
equipment installed power: about 170KW
equipment total length: 68 meters
This machine is suitable for the production of honeycomb paper core,cardboard.
Other products
Our exhibition
Certifications
Company information
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Factory workshop
Our Service
⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒Use- friendly English for operation system.
Packaging&transportation
FAQ Q1: Are you a factory or a trade company? You manufacture the machines all by yourself?
R: We are a factory in Shanghai. Yes, we design and manufacture the machines all by ourselves.
Q2: Which machines you mainly manufacture?
R: Currently, we mainly manufacture Honeycomb Core Making Line, Honeycomb Board Laminator Line, Honeycomb Board Slitting Machine, Honeycomb Board Slice Machine, Inverted Corrugated Board Making Line, Paper Slitter Rewinders Machine, Edgeboard Line, Round Corner Making Machine and Hole Making Machine etc. We are adjusting and improving ourselves according to the market demand.
Q3: Do you have videos to show how the machines operate? Can I pay a visit to your factory?
R: Yes, we have videos shot ourselves and can guarantee the truth of it. Of course you are welcomed to visit our factory and see how the machine operates by yourself any time. If you need us to pick you up from the airport or hotel, please kindly tell your schedule in advance. Besides, our Jurong production plant, Jiangsu province, will be a good choice for you to see our machines.
