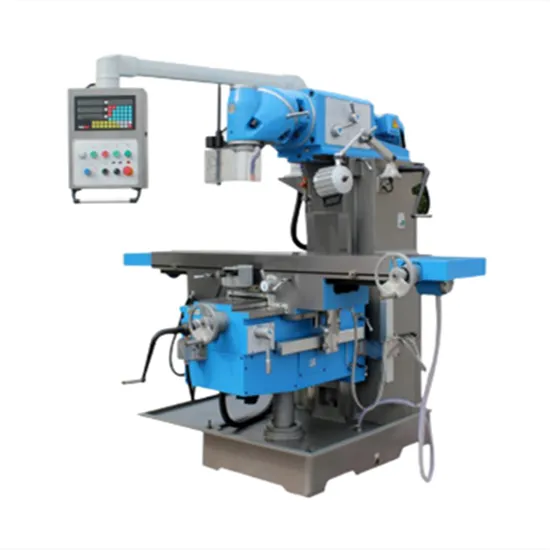

Universal Turret Milling Machine XL6230A Vertical Milling Machine
Basic Info.
Model NO.
XL6230A
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Universal Turret Milling Machine XL6230A Vertical
Machine Type
Milling Machine
Table Size
1370*300mm
X/Y/Z Travel
820*300*400mm
Max.Worktable Loading
300kg
T-Slots
3*14*80mm
Spindle Speed Series and Range
V45-1660rpm
Distance Between Spindle Nose and Table
100-500mm
Table Rapid Speed
1335/1335/1000
Dimension
1730*1760*1700mm
Machine Weight
1550kg
Transport Package
Wooden Cases
Specification
1830*1760*1700mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month
Product Description
Product PictureSpecification Parameter
| Item | Unit | XL6230 | XL6230A | XL6230C |
| Table size | mm | 1270*300 | 1370*300 | 1370*300 |
| X/Y/Z travel | mm | 720*280*400 | 820*300*400 | 1000*360*400 |
| Max.worktable loading | kg | 300 | 300 | 300 |
| T-slots(NO./width/pitch) | mm | 3*14*80 | 3*14*80 | 3*14*80 |
| Spindle speed series and range | rpm | V 45-1660(11steps) | ||
| Distance between spindle nose and table surface | mm | 100-500 | 100-500 | 100-500 |
| Table rapid speed(X/Y/Z) | mm | 1335/1335/1000 | 1335/1335/1000 | 1335/1335/1000 |
| Dimension | mm | 1730*1760*1700 | 1830*1760*1700 | 1830*1760*1700 |
| Machine weight | kg | 1550 | 1600 | 1700 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ
