Xushen ZHB-20 Welding Positioner with Automatic Turntable for Capacity 2000 kg

Product Description

Xushen ZHB-20 Welding Positioner with Automatic Turntable for Capacity 2000 kg

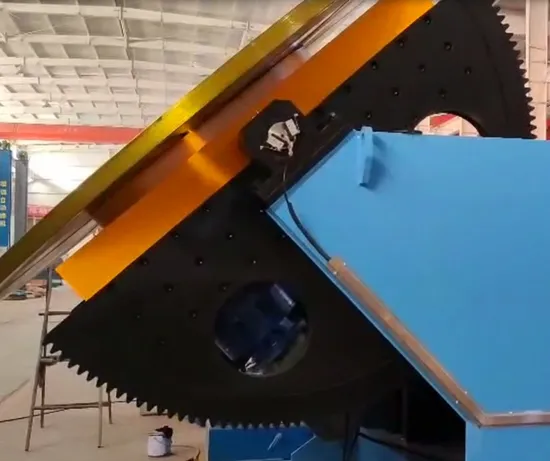

Welding positioners are generally composed of a worktable rotating mechanism and an overturning mechanism. By utilizing the lifting, overturning, and rotating functions of the worktable, the workpiece fixed on the worktable can be positioned at the desired welding and assembly angles. The worktable rotation is equipped with variable frequency and stepless speed control, allowing for satisfactory welding speed.

This series includes various types of positioners, such as tilt-type, head-tail rotation type, head-tail lifting type, head-tail tilting type, and double rotation type. They can be used in conjunction with welding operation machines to form automatic welding systems. They can also serve as peripheral equipment for robots, enabling welding automation. Moreover, special positioners can be designed and customized according to different types of workpieces and process requirements.

Product Parameters

Specification	ZHB6	ZHB10	ZHB20	ZHB30	ZHB60	ZHB100	ZHB150	ZHB200	ZHB300	ZHB400
Rated Load Capacity(Ton)	0.6	1	2	3	6	10	15	20	30	40
Rotation Speed(rpm)	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.02-0.2	0.016-0.16	0.016-0.16
Turning Speed(rpm)	≈0.63	≈0.4	≈0.3	≈0.3	≈0.3	≈0.26	≈0.26	≈0.2	≈0.1	≈0.1
Diameter of WorkingTable(mm)	φ800	φ1000	φ1200	φ1400	φ1500	φ2000	φ2000	φ2500	φ3000	φ3000
Maximum Eccentricity(mm)	100	100	150	150	200	200	200	200	200	200
Max Centre of Gravity Distance(mm)	300	300	300	300	300	400	500	630	630	630
Table Turning Angle(°)	0-90	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-90	0-90
Rotary Motor Power(KW)	0.37	0.37	0.75	1.5	2.2	3	4	5.5	7.5	7.5
Flip Motor Power(KW)	0.37	0.75	1.5	2.2	3	4	5.5	7.5	11	15
Max Rotary Diameter at 90°(mm)	≤1000	≤1600	≤2000	≤2400	≤2600	≤2900	≤3000	≤3200	≤3600	≤3800

Main Products
We mainly specialize in the research and production of welding manipulators, welding rotators, and welding positioners series.
We also provide longitudinal seam welding machines, circumferential seam welding machines, internal and external seam welding machines for various sizes of cylindrical bodies, various types of hardfacing machines, fully automated numerical control, and intelligent equipment, laser cutting equipment, robot assembly, and workstations.
Our products have been serving more than ten countries globally.

FAQ 1) Q:Are you a factory or trading company?
A: We are direct manufacturer and trading company.
2) Q: Where is your factory located? How can l visit there?
A: Our factory is located in Zhengzhou city,Henan Province,China. You can fiy to Zhengzhou airport directly.
3) Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory has gained lsO approval, SGS report and CE certificate
4) Q: Does your company accept ClF price?
A: Yes. We will state ClF price clearly on the quote according to the different destination port and various in differentmonths.
5) Q: l would like to ask you if it's possible to have my logo on the product.
A: Our company perfectly support customized logo service, but it will be extra service fee for logo modeling or if youcould provide .
6)Q: Can your equipment be customized?
A: Yes. We have a professional design team, which can be customized according to customer requirements.
