Plastic Mat Making Machines

Product Description

Product Description
Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
We can produce the complete line machines in the below:
PP WOVEN BAG PRODUCTION LINE PP WOVEN BIG BAG PRODUCE LINE PP.HDPE SHADE NET PRODUCTION LINE PP MAT PRODUCTOON LINE PP LENO MESH BAG PRODUCTION LINE
Process of manufacturing:
1. Polypropylene Granules are mixed with Master batch / pigment in a tumbler mixer and kept ready for extrusion.

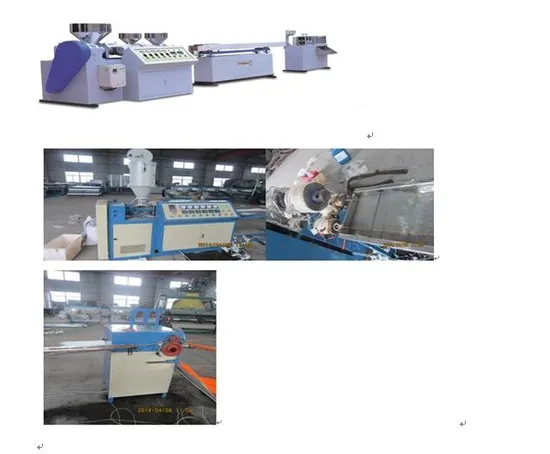

2. Color mixed granules are put through an extrusion process wherein hollow tubes are produced of 1.8 2.00 MM OD.
3. The tubes so produced are preserved in a tray carefully to maintain straightness. These tubes are fed into the weaving machine hopper. Depending on the Jacquard design pattern colored tubes are selected for weaving. On the weaving machine PP filament yarn is being used as Warp and Tubes as Weft.
4. On the weaving machine mats are produced in roll form which are thereafter cut in lengths of 6/7 feet depending on the requirement on cutting and hot sealing machine.
5. After cutting the mats are inspected for fouls / faults and the same are rectified.
6. The finished mat is then taken on a sewing machine and the border tape is then stitched on both the sealed ends.
7. The finished mats are then packed in an attractive printed bag and bundled for dispatch.
