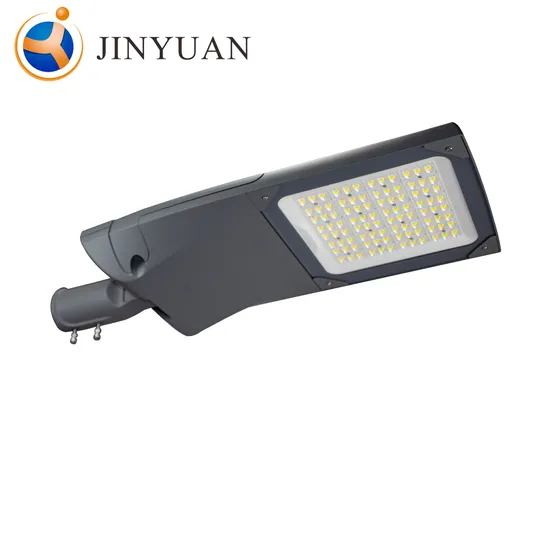

Jyl08, CE, ENEC, CB, RoHS, AC100-240V, IP66, 60W, 100W, 150W, 200W Die Casting Aluminum SMD LED Street Lamp

Product Description

Product Description

AC High light efficiency ENEC CB CE Certification Aluminum 5050SMD 60W,100W,150W, 200W Outdoor LED Street Light
Municipal engineering AC100-277V IP66 JYL08 SMD 5050 60W,100W,150W, 200W LED road lamp
At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
JYL08 series High light performance 60W,100W,150W, 200W led Street light
Product features:
♦ Patented technology, integrated structure design
♦ Excellent thermal conductivity and large heat exchange
♦ Using 5050 EMC bracket with high thermal conductivity
♦ Vertical or horizontal installation ,-15° to +15° angle adjustable
♦ Human efficacy light distribution

Model	JYL08-120	JYL08-150	JYL08-180	JYL08-200
Power	120W	150W	180W	200W
Ligth efficiency	140-180Lm/W	140-180Lm/W	140-180Lm/W	140-180Lm/W
Total flux	16800-21600lm	16800-21600lm	16800-21600lm	16800-21600lm
CCT	2700K /3000K / 4000K / 5000K / 5700K / 6500K
CRI	≥Ra70
LED chips	5050
Beam angle	150*90°/150*70°
IP	IP66
Voltage	AC100-277V,50/60HZ
Work environment	-30ºC~45ºC,10%~90% RH
Driver efficiency	≥88%
PF	≥0.95
LED life	>100000H
Housing material	Die casting aluminum
Pipe diameter	60mm
Lamp size(mm)	704*320*117
Packing size(mm)	720*350*150
Net weight(kg)	6.5
Gross weight(kg)	7
Model	JYL08-60	JYL08-80	JYL08-100	JYL08-120
Power	60W	80W	100W	120W
Ligth efficiency	140-190Lm/W	140-190Lm/W	140-180Lm/W	140-180Lm/W
Total flux	8400-11400lm	11200-15200lm	14000-18000lm	16800-21600lm
CCT	2700K /3000K / 4000K / 5000K / 5700K / 6500K
CRI	≥Ra70
LED chips	5050
Beam angle	150*90°/150*70°
IP	IP66
Voltage	AC100-277V,50/60HZ
Work environment	-30ºC~45ºC,10%~90% RH
Driver efficiency	≥88%
PF	≥0.95
LED life	>100000H
Housing material	Die casting aluminum
Pipe diameter	60mm
Lamp size(mm)	589*250*117
Packing size(mm)	605*290*180
Net weight(kg)	4
Gross weight(kg)	4.6
Model	JYL08-120	JYL08-150	JYL08-180	JYL08-200
Power	120W	150W	180W	200W
Ligth efficiency	140-180Lm/W	140-180Lm/W	140-180Lm/W	140-180Lm/W
Total flux	16800-21600lm	16800-21600lm	16800-21600lm	16800-21600lm
CCT	2700K /3000K / 4000K / 5000K / 5700K / 6500K
CRI	≥Ra70
LED chips	5050
Beam angle	150*90°/150*70°
IP	IP66
Voltage	AC100-277V,50/60HZ
Work environment	-30ºC~45ºC,10%~90% RH
Driver efficiency	≥88%
PF	≥0.95
LED life	>100000H
Housing material	Die casting aluminum
Pipe diameter	60mm
Lamp size(mm)	704*320*117
Packing size(mm)	720*350*150
Net weight(kg)	6.5
Gross weight(kg)	7

We welcome you to purchase our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results. Pls contact us directly for OEM/ODM business of lighting.
