Tuf 2000m modular ultrasonic flowmeter ultrasonic flow meter small ultrasonic flow meter pipe ultrasonic flowmeter

Product Description

Product Description

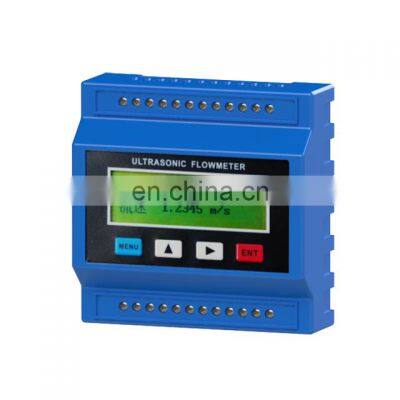

Product DescriptionIntroductions of TUF-2000M-TM-1 (DN15~DN100mm) Ultrasonic Flow/Heat Module Flow Meter FlowmeterThe TUF-2000M modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels, The design of the meter is intended to provide for users like system integrators and OEM users with a lowest cost but of high performance flow meter.SpecificationitemvalueWarranty18monthsCustomized supportOEMPlace of OriginChinaBrand NameTmeasurementModel NumberTDS-100M&TUF-2000M TypeVariable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Ultrasonic flow meterProduct NameModular Ultrasonic Flow MeterAccuracybetter than 1%Repeatabiltybetter than 0.2%Output1XMODBUS,RS485,4-20mA and OCT outputTransducer typeOperate with clamp on, insertion and flow-cell transducerFlash memoryAll the parameters can be solidify into the flash memoryOperateeasy to operateDigital inputscan be inputted by used of the analog inputsPower supply8-36VDC~24VDCBrandTmeasurementHow to installApplicationSensor OptionsSensors of TUF-2000M Modular Ultrasonic Flow Meter Sensors of TDS-100M Modular Ultrasonic Flow MeterRelated ProductTDS-100H Hand Held Ultrasonic flow meter TDS-100F1 Wall Mount Ultrasonic flow meter T3-2-H Ultrasonic water meter Contact Us
