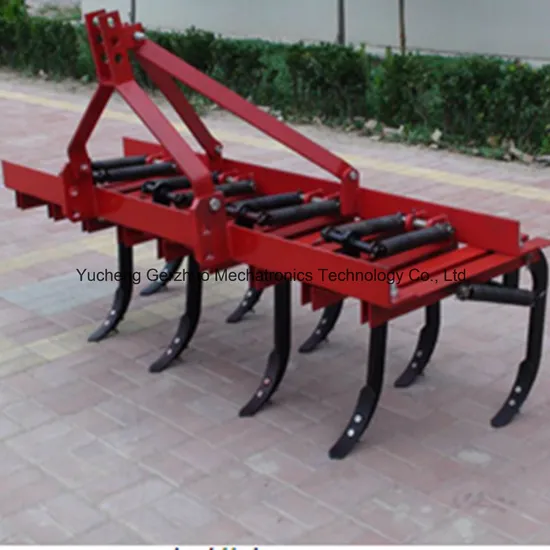

3ZT Series Spring Cultivator and China Spring Cultivator Manufacturer
Product introduction:
3ZT series double-spring cultivator adopts double-spring tension device,the cultivator's hoe blades will automatic lift up if meet some barrier, and return back to work when cross the barrier,then can protect blades and cultivator. This series cultivator can be used to cultivate and loosen soil in the field of maize,soybean, cotton,peanuts and sweet potato etc.It has features on conveniently adjusted row spacing, flexible depth control, conveniently changeable between deep loosening and ridging and so on.
Technical parameters:

Model	3ZT-120	3ZT-150	3ZT-180	3ZT-210	3ZT-250	3ZT-300
Qty. of tine (pcs)	5	7	9	11	13	15
Working width (mm)	1200	1500	1800	2100	2500	3000
Working depth (mm)	60~200
Matched power (kw)	25~30	30~40	40~50	50~70	60~80	70~100
Linkage	Three-point mounted
Weight (KG)	220	260	295	335	375	420
